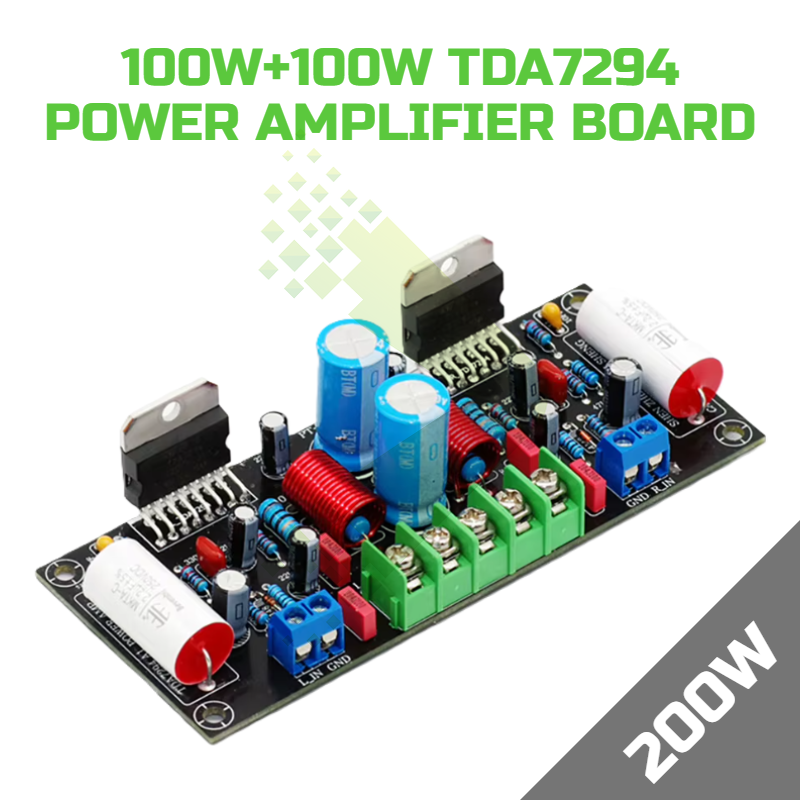

100W+100W TDA7294 Power Amplifier Dual Channel HIFI Stereo Audio Power Amplifier

The 100W+100W TDA7294 Power Amplifier Board is a high-performance stereo audio amplifier module designed for audiophiles, DIY electronics enthusiasts, and professionals seeking exceptional sound quality. Based on the renowned TDA7294 power amplifier IC from STMicroelectronics, this dual-channel board delivers robust audio performance with minimal distortion. Its professional-grade construction and versatile connectivity make it ideal for applications ranging from home theatre systems to custom speaker projects and professional audio installations.

Key Features:

• Dual-Channel Configuration: Stereo amplifier with two independent channels, each rated at 100W output power.
• Professional Connectivity: Green screw terminal blocks for secure speaker connections and power input, simplifying installation and maintenance.
• Adjustable Controls: Blue potentiometers for independent volume adjustment on each channel, allowing precise audio tuning.
• LED Indicators: Red LED power indicators for visual confirmation of operational status on each channel.
• Robust Power Supply: Large blue electrolytic filter capacitors for stable power delivery and reduced noise.
• Heat Management: Two large black heatsinks with integrated TO-220 power transistors for efficient thermal dissipation during extended operation.
• High-Quality Components: Red film capacitors and precision resistors throughout the signal path for superior audio fidelity.

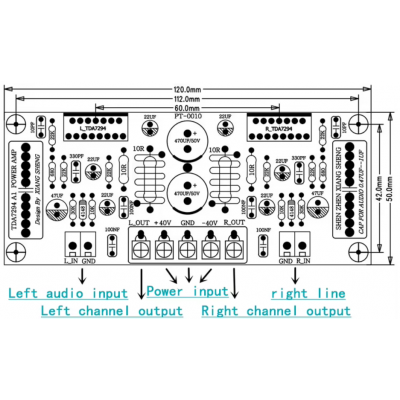

• Mounting Holes: Four corner mounting points for secure installation in enclosures or chassis.
• Core IC: Dual TDA7294 power amplifier chips, industry-standard components known for reliability and performance.
• Output Power: 100W per channel (conditions dependent on supply voltage and load impedance).
• Signal Path: High-quality audio-grade components including metal film resistors and polypropylene capacitors.
• Input Coupling: AC-coupled inputs for protection against DC offset and compatibility with various audio sources.
• PCB Construction: Professional black solder mask PCB with clear component identification and robust traces.
• Protection Circuitry: Built-in short-circuit, thermal, and output protection features inherent to the TDA7294 design.

Applications

• Home Audio Systems: Build custom stereo amplifiers for bookshelf speakers, home theatre setups, or multimedia systems.
• DIY Electronics Projects: Perfect for hobbyists creating bespoke audio equipment with professional-grade performance.
• Speaker Upgrade Projects: Drive passive speakers with clean, powerful amplification for enhanced audio experiences.
• Educational Use: Ideal for teaching audio electronics, amplifier design principles, and power supply fundamentals.
• Professional Audio Applications: Suitable for small venue sound reinforcement, studio monitoring, and installation projects.

Why Choose the 100W+100W TDA7294 Power Amplifier Board? This amplifier board combines proven TDA7294 technology with thoughtful design and quality components to deliver outstanding audio performance at an accessible price point. The dual-channel configuration, adjustable controls, and robust construction make it an excellent choice for anyone looking to build or upgrade audio systems with confidence. Whether you're an experienced audio engineer or a passionate DIY enthusiast, this board provides the foundation for exceptional sound reproduction.
