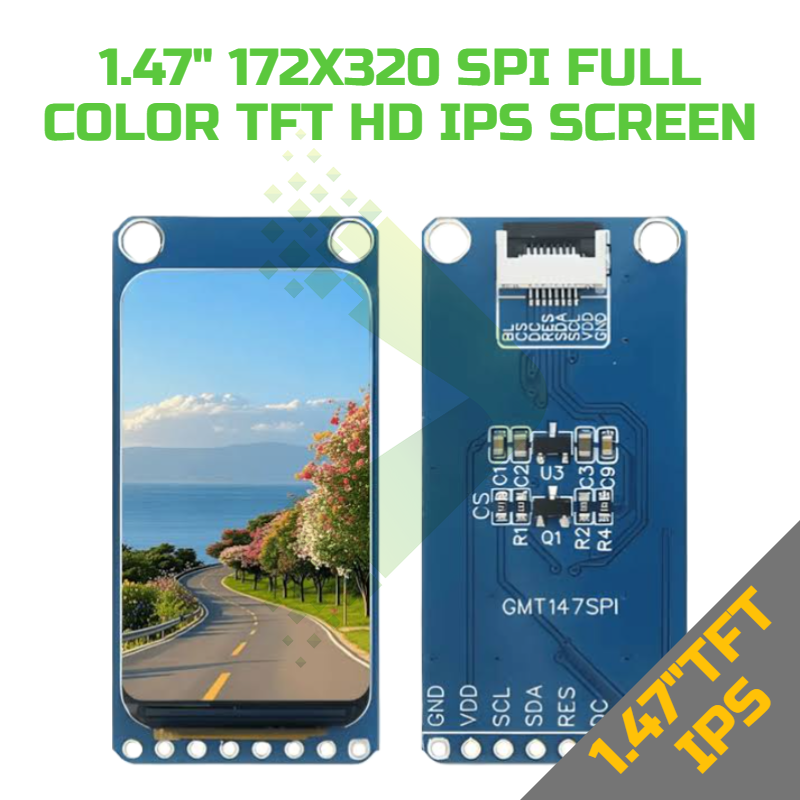

1.47" 172x320 3V3 SPI Full Color TFT HD IPS Display Module

The 1.47 Inch 172×320 SPI Full Colour TFT HD IPS Screen is a compact, high-resolution display module designed for embedded projects requiring vibrant visuals in a small footprint. Built around the reliable ST7789 display controller, this IPS panel delivers wide viewing angles and brilliant colour rendering, making it perfect for hobbyists, makers, and professionals creating IoT devices, wearables, and microcontroller-driven displays. Its straightforward SPI interface and compatibility with popular platforms like Arduino, ESP32, and Raspberry Pi ensure easy integration into a wide range of applications.

Key Features:

• Compact Display: 1.47-inch diagonal screen with a resolution of 172 × 320 pixels for crisp, detailed visuals.
• IPS Technology: In-Plane Switching (IPS) panel provides wide viewing angles and vibrant, accurate colour reproduction.
• SPI Interface: Simple 4-wire serial SPI communication for easy connection to microcontrollers and development boards.
• Broad Compatibility: Works seamlessly with Arduino, ESP32, Raspberry Pi, and other popular platforms.
• Low Operating Voltage: Runs on 3.3V logic and power (Note: applying 5V directly to VCC without level shifting can damage the panel).
• Mounting Holes: Four corner mounting holes for secure installation in enclosures and projects.
• Pin Labels: Clearly marked pin headers (GND, VDD, SCL, SDA, RES, DC, CS, BL) for straightforward wiring.
• Display Controller: ST7789 / ST7789V3 driver IC, widely supported in graphics libraries and code examples.
• Display Type: TFT (Thin-Film Transistor) with full-colour capability.
• Typical Pinout: VCC (3.3V), GND, CS (Chip Select), RST/RES (Reset), DC/RS (Data/Command), SDA/MOSI (SPI Data), SCL/SCK (SPI Clock), BLK/BL (Backlight control).
• Backlight Control: BL pin supports PWM dimming or can be tied to 3.3V for constant illumination.
• Resolution: 172 pixels (width) × 320 pixels (height) for detailed graphics and text rendering.
• Screen Size: 1.47 inches diagonal.
• Interface Type: 4-wire SPI (Serial Peripheral Interface).
• Power Supply: 3.3V DC (do not use 5V without appropriate level conversion).
• Driver IC: ST7789 / ST7789V3.
• Available Sources: Compatible with Waveshare 1.47-inch LCD Module and various generic breakout boards.

Applications

• IoT Devices: Perfect for smart home controllers, environmental monitors, and connected gadgets requiring visual feedback.
• Wearable Electronics: Ideal for DIY smartwatches, fitness trackers, and portable displays.
• Microcontroller Projects: Excellent for Arduino, ESP32, and Raspberry Pi projects needing compact, high-quality displays.
• Educational Use: Great for teaching embedded graphics programming and display interfacing concepts.
• DIY Instrumentation: Suitable for custom meters, gauges, and data loggers with real-time visual output.

Why Choose the 1.47 Inch 172×320 SPI Full Colour TFT HD IPS Screen? This display module combines sharp resolution, vivid IPS colour, and straightforward SPI connectivity in a compact, easy-to-integrate package. Whether you're building your next IoT gadget, wearable device, or learning platform, this screen delivers professional-quality visuals with the flexibility and community support to get your project off the ground quickly.
