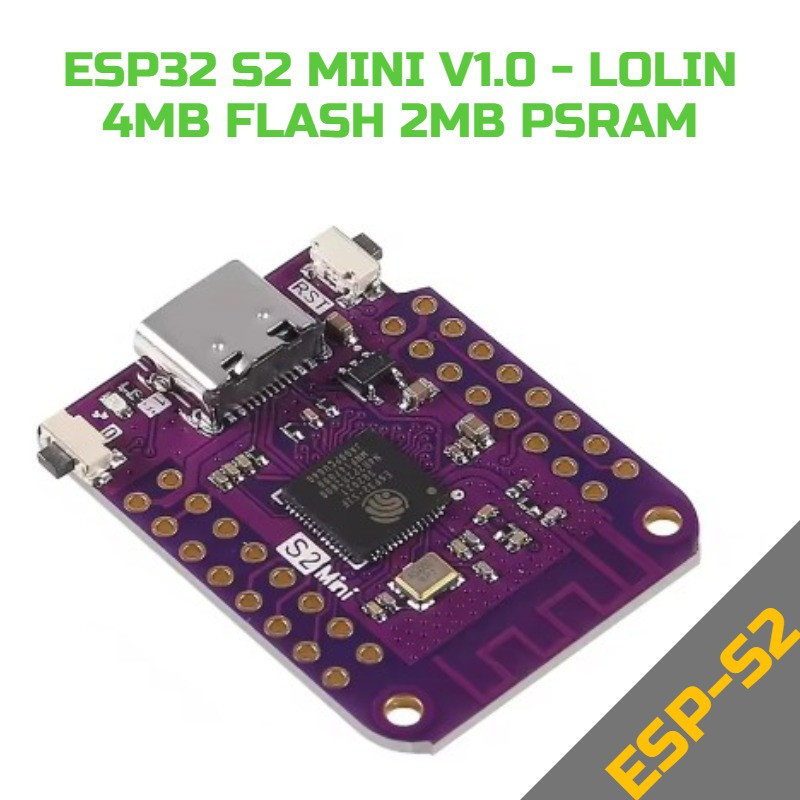

ESP32-S2 D1 MINI LOLIN WIFI IOT Board

The ESP32-S2 Mini V1.0.0 is a compact and powerful Wi-Fi development board from LOLIN, based on the ESP32-S2FN4R2 microcontroller. Designed for makers, IoT enthusiasts, and professionals, this board combines robust processing power with wireless connectivity in a miniature form factor. Perfect for applications requiring Wi-Fi connectivity, sensor integration, and low-power operation, the ESP32-S2 Mini is an excellent choice for building smart devices, IoT projects, and wireless sensor networks.

Key Features:

• Microcontroller: ESP32-S2FN4R2, a 32-bit Xtensa single-core processor with Wi-Fi capabilities.
• Memory: 4MB Flash and 2MB PSRAM for extensive program storage and data handling.
• Wireless Connectivity: Built-in 2.4GHz Wi-Fi (802.11 b/g/n) for seamless IoT connectivity.
• USB-C Interface: Modern USB Type-C connector for programming, debugging, and power supply.
• Compact Design: Ultra-small purple PCB with castellated edges for direct soldering or breadboard use.

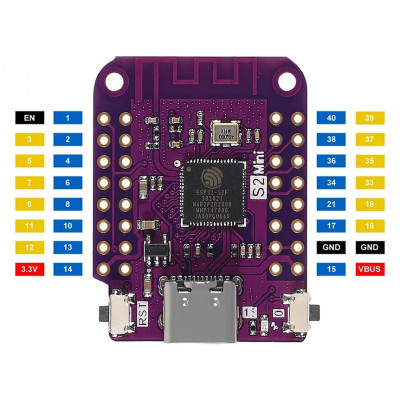

• GPIO Breakout: Multiple GPIO pins broken out along both sides for easy interfacing with sensors and modules.
• Power Supply: Flexible power options via USB-C or external supply pins.
• LED Indicator: Onboard LED for status indication and debugging.
• Breadboard Compatible: Pitch-perfect pin spacing for standard breadboard prototyping.
• LOLIN Quality: Manufactured by LOLIN (WeMos), known for reliable ESP-based development boards.

Features:

• Processor: Xtensa LX7 single-core 32-bit processor, up to 240MHz
• Flash Memory: 4MB integrated flash storage
• PSRAM: 2MB for extended RAM capabilities
• Wi-Fi: 802.11 b/g/n, 2.4GHz band, supports Station/SoftAP/SoftAP+Station modes
• Operating Voltage: 3.3V logic level
• USB Interface: USB Type-C for native USB support and programming
• ADC: Multiple channels of 12-bit ADC for analogue sensing
• Touch Sensors: Up to 14 capacitive touch GPIO pins
• SPI, I2C, I2S, UART: Multiple communication protocol support
• PWM Channels: Multiple PWM outputs for motor control and LED dimming
• Temperature Sensor: Built-in temperature sensing capability
• Security Features: Hardware encryption acceleration (AES, SHA, RSA)
• Low Power Modes: Deep-sleep and light-sleep modes for battery-powered applications
• Castellated Holes: Edge mounting pads for direct PCB integration
• Board Dimensions: Compact miniature form factor (approximately 34.3mm x 25.4mm)

Applications

• IoT Projects: Ideal for smart home devices, environmental monitoring, and connected sensors.
• Wireless Communication: Perfect for Wi-Fi-enabled devices and wireless data logging.
• Educational Use: Excellent for teaching IoT concepts, wireless protocols, and embedded programming.
• Home Automation: Suitable for controlling lights, appliances, and creating custom smart home solutions.
• Wearable Electronics: Compact size makes it ideal for battery-powered wearable projects.

Why Choose the ESP32-S2 Mini V1.0.0? The LOLIN ESP32-S2 Mini delivers exceptional Wi-Fi performance and processing power in an incredibly compact package. With generous memory resources, native USB support, and a wealth of GPIO options, this board provides everything you need for modern IoT development. Whether you're a hobbyist building your first connected device or a professional prototyping commercial products, the ESP32-S2 Mini offers the perfect balance of features, size, and affordability to bring your wireless projects to life.
