ESP32-C3 PRO Mini WiFi and Bluetooth Development Board

SKU: B3722

R110.00

No tax
Delivery: 2-5 working days

ESP32 C3 PRO Mini WiFi and Bluetooth Development Board - Arduino Compatable via ESP32 extention library.

PLEASE NOTE: We've moved our retail store - Click here for our new Address

Spend R2,000.00 more and get Free Shipping!

Description:

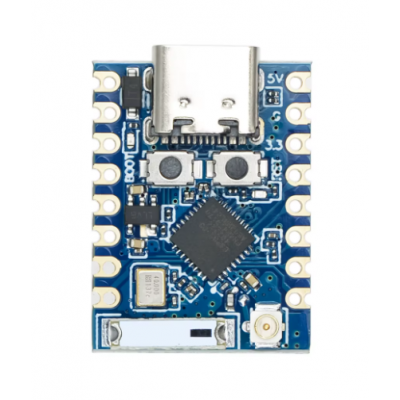

ESP32C3 PRO MINI development board onboard ESP32-C3FH4 chip module WiFi Bluetooth development board

ESP32C3 PRO MINI is an IoT mini development board based on the Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-V CPU that includes an FPU (Floating Point Unit) that can perform 32-bit single precision operations and has powerful computing capabilities. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols. This board comes with a ceramic antenna and IPEX antenna mount, which can enhance the signal strength for wireless applications. It also has a compact and exquisite appearance combined with a single-sided surface mount design. It is equipped with rich interfaces, with 11 digital I/O available as PWM pins and 4 analog I/O available as ADC pins. It supports four serial interfaces: UART, I2C, and SPI. There is also a small reset button and a bootloader mode button on the board.

Based on the above characteristics, ESP32C3SuperMini is positioned as a high-performance, low-power, and cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications.

Product parameters:

1. Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor, running at up to 160 MHz

2. WiFi: 802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP + Station mode, hybrid mode

3. Bluetooth-Compatible: Bluetooth V5.0

4. Ultra-low power consumption: deep sleep power consumption is about 43uA

5. Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash.

6. Chip model: ESP32C3FN4

7. Ultra-small size: as small as a thumb (22.52x18mm) classic shape, suitable for wearable devices and small projects

8. Reliable security features: support AES-128/256, hash encryption hardware accelerator. RSA, HMAC, digital signature, secure boot

9. Rich interfaces: 1xl2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC

10. Single-sided components, surface mount design

11. Onboard LED blue light: GPIO8 pin
