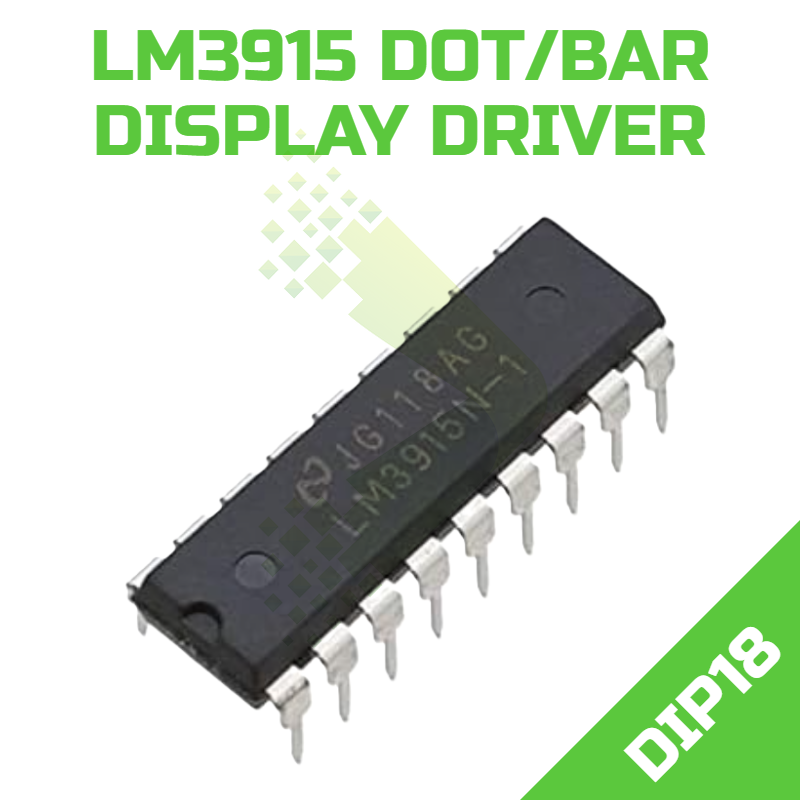

LM3915 10 Analog Voltage Level Driver

The LM3915 Dot/Bar Display Driver is a versatile integrated circuit designed to drive LED bar-graph displays with logarithmic spacing, making it ideal for audio level meters, battery monitors, and various analog signal visualisation applications. Based on the LM3915 IC from Texas Instruments, this monolithic chip provides a simple and elegant solution for converting analog signals into visual LED outputs. Perfect for hobbyists, educators, and audio enthusiasts, it delivers professional-quality display functionality with minimal external components.

Tutorial Resource: Comprehensive setup and application guide available << HERE >>

Key Features:

• Display Modes: Selectable dot or bar-graph display modes with a single pin
• LED Driver Outputs: 10 individual LED driver outputs, each capable of sourcing or sinking up to 30mA
• Logarithmic Scaling: 3dB per step logarithmic display, optimised for audio and decibel measurements
• Adjustable Range: Input signal range easily adjustable with two external resistors
• Wide Supply Voltage: Operates from 3V to 25V, accommodating various power supply configurations
• Internal Reference: Built-in 1.25V precision voltage reference for accurate threshold setting
• Cascadable Design: Multiple ICs can be cascaded for extended display ranges
• Low Power Consumption: Efficient design suitable for battery-powered applications
• Part Number: LM3915N-1 (National Semiconductor/Texas Instruments)
• Operating Temperature Range: 0°C to +70°C (commercial grade)
• Package Type: 18-pin DIP (Dual In-line Package) for easy breadboard prototyping
• 10 Precision Comparators: Internal comparator array for accurate level detection
• LED Current Regulation: Programmable LED current with a single external resistor

Applications

• Audio Equipment: VU meters, audio level indicators, and mixing console displays
• Battery Monitoring: Visual fuel gauges and power level indicators for portable devices
• Educational Projects: Demonstrating analog-to-digital conversion and LED control principles
• DIY Electronics: Custom instrumentation panels, signal strength meters, and analogue gauges
• Industrial Monitoring: Temperature, pressure, or voltage level displays in control systems

Why Choose the LM3915 Dot/Bar Display Driver? The LM3915 combines simplicity with professional performance, offering an elegant solution for converting analog signals into eye-catching LED displays. Its logarithmic scaling makes it particularly well-suited for audio applications, whilst its flexibility and ease of use ensure success in a wide range of projects. Whether you're building a vintage-style VU meter or creating custom instrumentation, the LM3915 delivers reliable results with minimal fuss.
