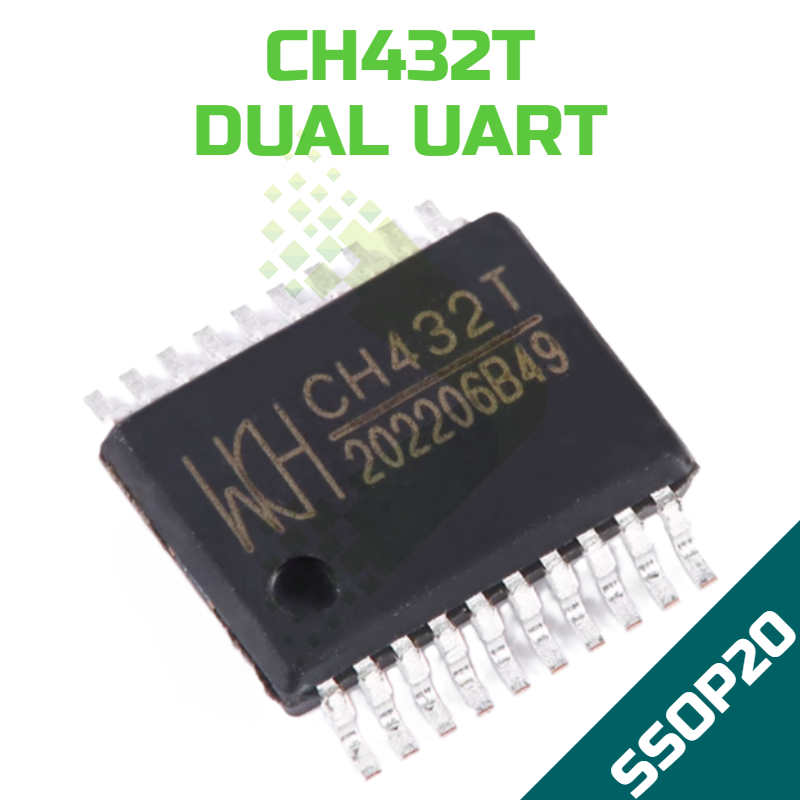

CH432T Dual UART chip

SKU: VNB3404
R62.61
VAT Inclusive
Delivery: 2-5 working days

CH432T SOIC20 Dual UART SPI IC from WCH (16CX5X compatable)

Volume discounts

Quantity Unit price You Save
10 R59.48 Up to R31.30
50 R56.35 Up to R313.03
100 R50.08 Up to R1,252.12
Quantity

Spend R2,000.00 more and get Free Shipping!

Description:

The CH432 is a dual UART chip that includes two 16C550-compatible asynchronous serial ports, supports half-duplex transceiver automatic switching and IrDA infrared codec, and supports communication baud rates up to 4Mbps, it can be used for RS232 serial port expansion of MCU/embedded system, high-speed serial port with automatic hardware rate control, RS485 communication, IrDA communication, etc.

Features:

  • Two asynchronous serial ports that are completely independent, compatible with 16C450, 16C550 and 16C552 and enhanced.
  • Supports 5, 6, 7 or 8 data bits and 1 or 2 stop bits.
  • Supports odd verification, even verification, no verification, blank 0, flag 1 and other verification methods.
  • Programmable communication baud rate, support 115200bps and communication baud rate up to 4Mbps.
  • Built-in 16-byte FIFO fist in fist out buffer, Support for 4 FIFO trigger stages.
  • Support MODEM modem signals CTS, DSR, RI, DCD, DTR, RTS, can be converted to RS232 level by 75232 chip.
  • Supports hardware flow control signals CTS and RTS automatic handshake and automatic transmission rate control, compatible with TL16C550C.
  • Supports serial frame error detection and supports Break line interval detection.
  • Support full-duplex and half-duplex serial communication, provide RTS serial port sending status signal to support RS485 transceiver automatic switching.
  • Built-in SIR infrared codec, supports IrDA infrared communication from 2400bps to 115200bps baud rate.
  • Built-in clock oscillator, supports crystals with a frequency range of 0.9216MHz to 32MHz,the default is 22.1184MHz crystal.
  • Two microcontroller interfaces are available: 8-bit passive parallel interface at 10MB speed and SPI serial interface at 3MB/24MHz speed.
  • The parallel interface consists of an 8-bit data bus, 4-bit address, 3-wire control: chip select input, write operation, and optional read operation.
  • The SPI serial interface includes SPI chip select, serial clock, serial input and output, and the SPI output can be connected in parallel with the input.
  • The interrupt output pin is an optional connection, active low, can be replaced by the interrupt flag bit in the Query Register.
  • Support 5V or 3.3V power supply voltage, support serial low-power sleep mode.
