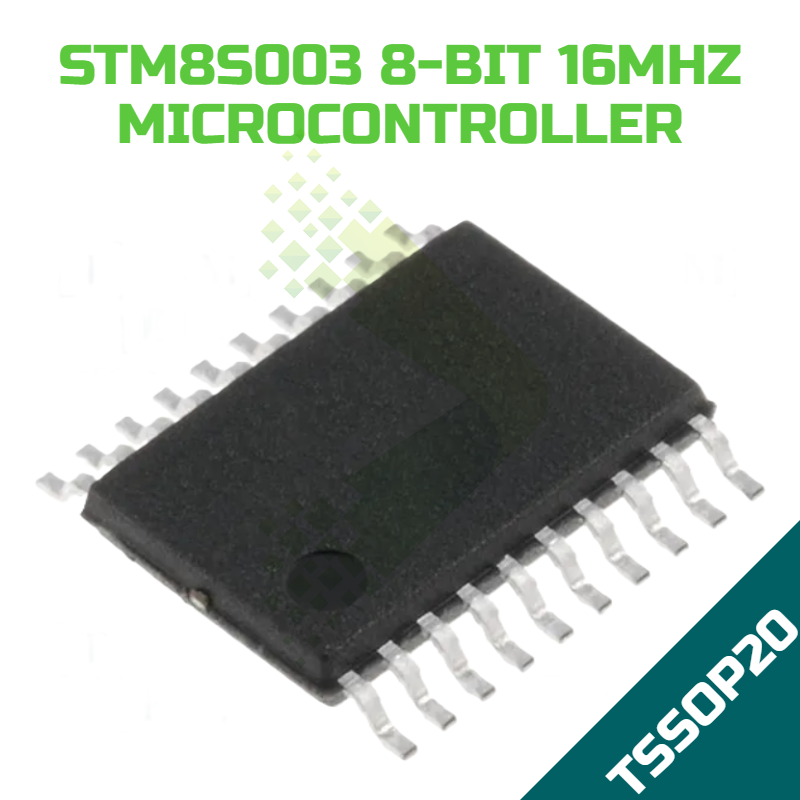

STM8S003F3P6 Low-Cost 8-bit 16Mhz Microcontroller by STMicroelectronics

The STM8S003F3P6 8-Bit Microcontroller is a powerful and cost-effective solution for embedded system development. Based on the STM8S003F3P6 microcontroller with its efficient 8-bit core running at up to 16 MHz, this component is perfect for hobbyists, educators, and professionals seeking reliable performance in compact applications. Its rich peripheral set and low power consumption make it ideal for a wide range of projects from consumer electronics to industrial control systems.

Key Features:

• 8-Bit Core Architecture: STM8 core with Harvard architecture and 3-stage pipeline for efficient code execution.
• Operating Frequency: Up to 16 MHz maximum clock speed for responsive performance.
• Low Power Consumption: Multiple power-saving modes ideal for battery-operated applications.
• Versatile Programming: Supports in-circuit programming and debugging via SWIM (Single Wire Interface Module).
• Supply Voltage Range: 2.95V to 5.5V operation, providing flexibility for various power supply configurations.
• Compact Package: TSSOP20 surface-mount package for space-efficient PCB designs.
• Part Number: STM8S003F3P6
• Flash Memory: 8 KB program memory with read-while-write capability.
• RAM: 1 KB of data memory.
• EEPROM: 128 bytes of non-volatile data storage.
• Peripheral Set: Includes timers (1x 16-bit advanced control, 1x 16-bit general purpose, 1x 8-bit), UART, SPI, and I²C interfaces.
• Analogue Features: 10-bit ADC with up to 5 channels for sensor interfacing.
• GPIO Pins: Up to 16 I/O pins, most of which are 5V-tolerant.
• Clock Sources: Internal 16 MHz RC oscillator and optional external crystal oscillator support.
• Watchdog Timers: Independent watchdog and window watchdog for enhanced system reliability.
• Operating Temperature Range: -40°C to +85°C (industrial grade).
• Interrupt Controller: Nested interrupt controller with up to 32 interrupt sources.

Applications

• Consumer Electronics: Perfect for appliances, remote controls, and smart devices requiring cost-effective control solutions.
• Industrial Control: Suitable for motor control, sensor monitoring, and process automation applications.
• Educational Projects: Excellent for teaching embedded systems programming and microcontroller fundamentals.
• IoT Devices: Ideal for low-power sensor nodes and data acquisition systems.
• DIY Electronics: Great for hobbyist projects requiring reliable microcontroller functionality in a compact form factor.

Why Choose the STM8S003F3P6 Microcontroller? The STM8S003F3P6 delivers exceptional value with its balance of performance, peripheral richness, and affordability. Its proven STM8 architecture, comprehensive development tool support, and extensive online community resources make it an excellent choice for both newcomers to embedded systems and experienced developers seeking a reliable, cost-effective solution for their next project.
