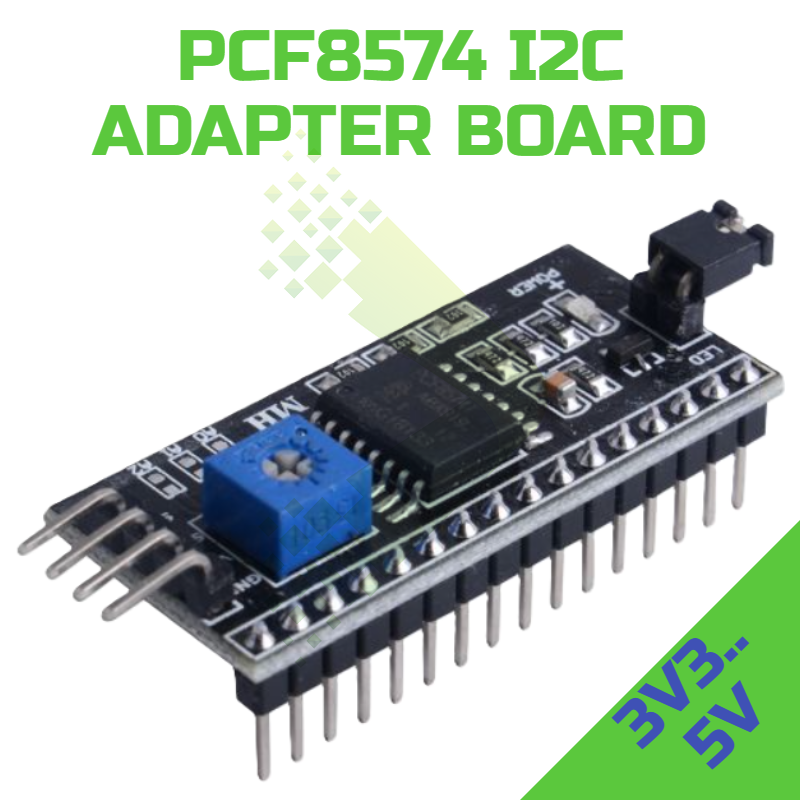

PCF8574 I2C LCD Interface Module

The PCF8574 I2C Adapter Board is a compact and versatile interface module designed to expand digital I/O capabilities through the I2C bus protocol. Based on the PCF8574 8-bit I/O expander chip, this board provides an elegant solution for adding extra GPIO pins to microcontroller projects where pin counts are limited. It is an excellent choice for hobbyists, educators, and professionals working on projects that require simple parallel I/O expansion, making it ideal for LCD displays, LED matrices, sensor arrays, and general-purpose digital control applications.

Key Features:

• I2C Interface: Simple two-wire communication protocol (SDA/SCL) for easy integration with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
• Breadboard Compatible: Standard DIP pin spacing allows for direct insertion into breadboards and prototyping boards.
• Blue Potentiometer: On-board trimmer potentiometer for contrast adjustment when used with character LCD displays.
• Compact Form Factor: Space-efficient design suitable for projects with limited board space.
• Header Pins: Pre-soldered pin headers for immediate connectivity and ease of use.
• Power and Ground Rails: Convenient power distribution for connected devices.
• Address Configuration: Supports multiple devices on the same I2C bus through address selection.
• DC Power Jack: On-board power connector for external supply when needed.
• Main IC: PCF8574 8-bit I/O expander with I2C-bus interface.
• I/O Ports: 8 quasi-bidirectional input/output pins for parallel expansion.
• Operating Voltage: Typically 2.5V to 6V compatible (verify specific board variant).
• I2C Address Range: Configurable addresses (typically 0x20-0x27 for PCF8574 or 0x38-0x3F for PCF8574A variant).
• Maximum I2C Clock Frequency: Up to 100 kHz (standard mode) or 400 kHz (fast mode) depending on variant.
• Current Capability: Each I/O pin can typically source/sink up to 25mA.
• Interrupt Output: Open-drain interrupt pin for efficient polling-free operation.
• Package: DIP-style module with through-hole pins for easy mounting and soldering.

Applications

• LCD Display Control: Commonly used as an I2C backpack for 16×2 and 20×4 character LCD displays, reducing wiring from 6+ pins to just 2.
• LED Matrix and Multiplexing: Expands GPIO for driving LED arrays and multi-segment displays.
• Sensor Arrays: Allows connection of multiple digital sensors and switches without consuming primary microcontroller pins.
• Home Automation: Ideal for controlling relays, reading buttons, and interfacing with multiple devices in smart home projects.
• Educational Projects: Perfect for teaching I2C communication protocols and GPIO expansion techniques in electronics courses.

Why Choose the PCF8574 I2C Adapter Board? The PCF8574 I2C Adapter Board offers a practical and efficient solution for expanding your microcontroller's I/O capabilities without the complexity of additional wiring. Its proven PCF8574 chip and straightforward I2C interface make it accessible for beginners whilst remaining valuable for advanced applications. Whether you're connecting an LCD display or building a complex control system, this adapter board simplifies your design and keeps your project organised.
