Isolated Type C to RS485 Module

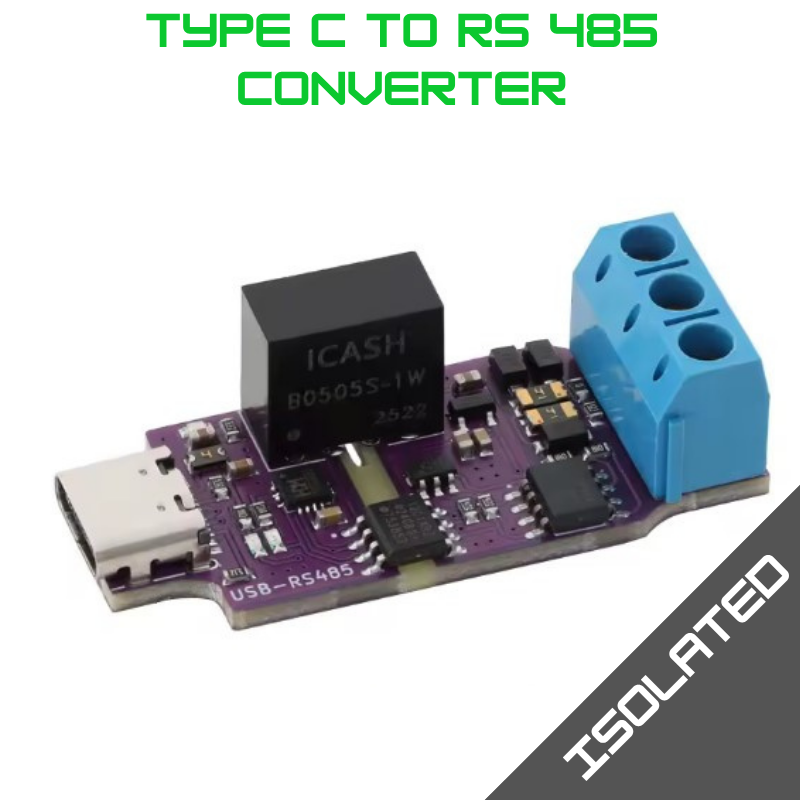

This module is a fully isolated USB-to-RS485 converter, utilizing dedicated isolation chips for both power and communication. The USB port uses a Type-C connector, an isolated power supply, and magnetically isolated communication. The maximum communication rate reaches 2Mbps. A 120Ω balancing resistor is included by default, but users can remove the 09Ω resistor to eliminate the 120Ω balancing resistor. The module also includes onboard protection measures such as a TVS and fuses. The module's external Type-C port has a resettable fuse and is only for C-to-C communication and power. The RS485 port uses a 5.08mm pitch KF301 terminal block for ease of use.

Specifications:

• Type: Isolated USB to RS485 Serial Port Module
• Operating Temperature: ISO1455
• Dissipation Power: Low
• Communication Rate: Maximum 2Mbps
• Isolation: Dual isolation for power and communication
• Package: Voltage Regulator

Versatile Compatibility and Performance

Designed for both hobbyists and professionals, this USB to RS485 converter is compatible with a wide array of devices, including Arduino, STM32, and other smart electronics. Its robust performance is evident in the high-speed communication rate of up to 2Mbps, which is ideal for applications requiring rapid data transfer. The module supports a smart range of experimentation with its versatile usage, catering to various scenarios from simple sensors to complex industrial automation systems.

Ease of Use and Customization

The module's design emphasizes user-friendliness, featuring a 5.08mm pitch KF301 terminal block for straightforward RS485 connections. Additionally, users have the flexibility to customize their experience by removing the jumper resistor to eliminate the 120Ω balancing resistor. The module also includes onboard protection measures, including a TVS and fuses, to provide peace of mind in high-voltage environments. Its is_customized feature allows for tailored solutions to specific needs, making it a versatile addition to any electronic project.
