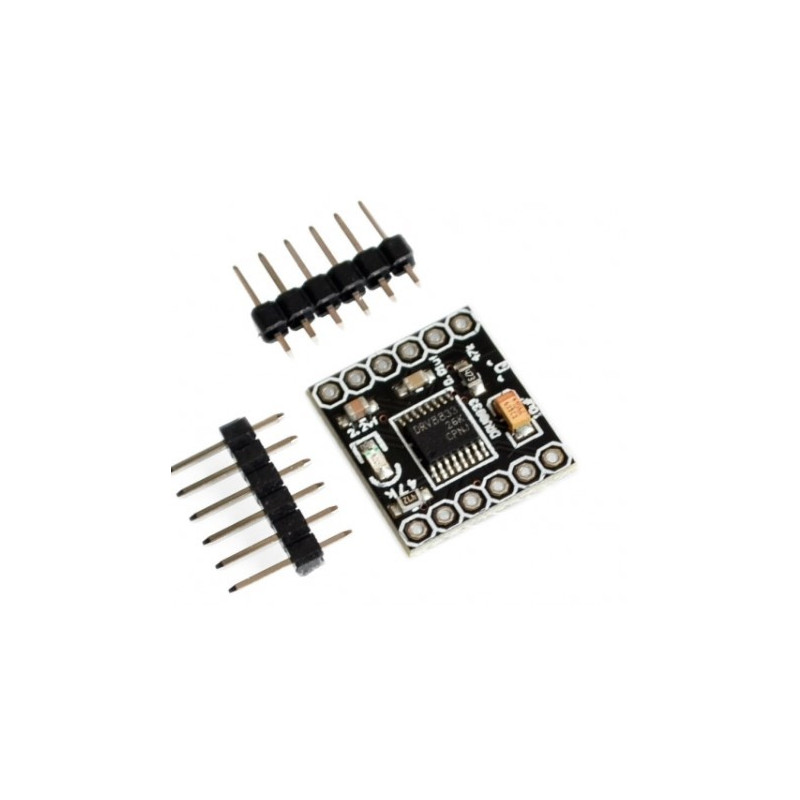

DRV8833 2 channel DC Motor drive module

Description:

1. Size:18.5*16mm

2. Input voltage:3V-10V

3. Single H-Bridge output current:1.5A(It can drive two DC motor)

4. Overcurrent protection:YES

5. Short circuit protection:YES

6. Undervoltage lockout:YES

7. Overheating protection:YES

8. With a low-power sleep mode

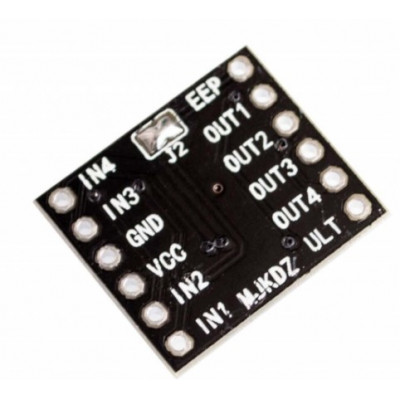

Feature:

1. ULT PIN:mode set.Low level is sleep mode

2. OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2

3. OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4

4. EEP PIN:Output protection.Default no need to connect.

5. VCC:3-10V

6. GND

Application:

1. DC motor which drive current is less then 1.5A

2. 4-wire step motor
