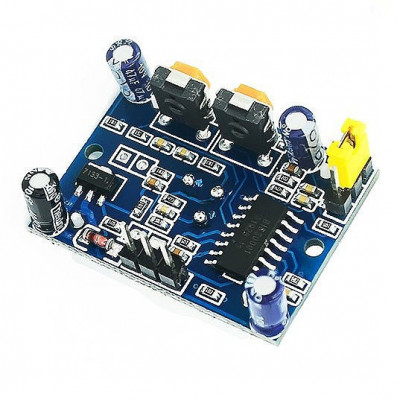

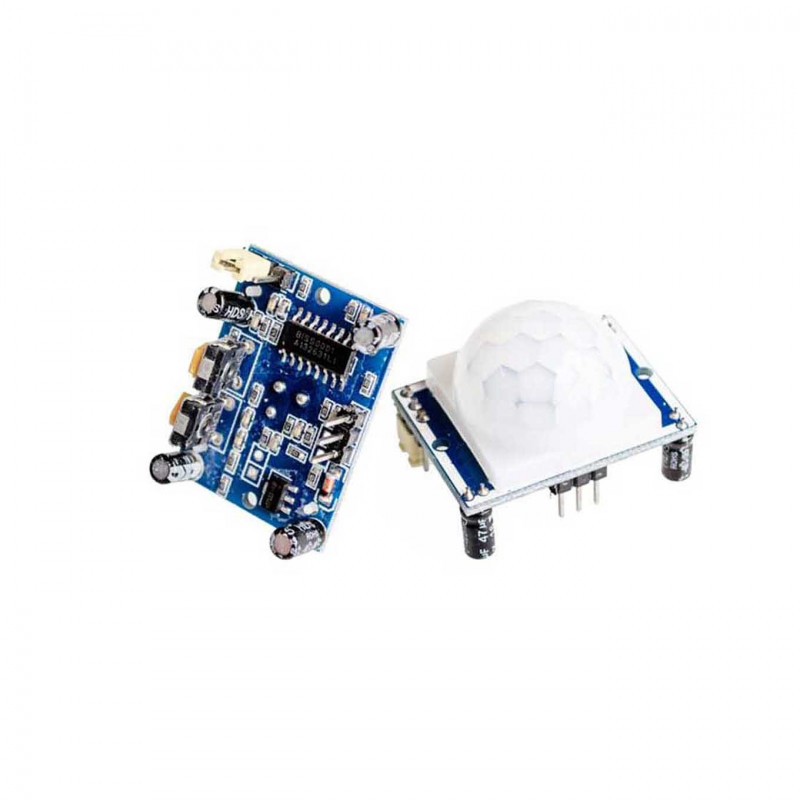

HC-SR501 Infrared Motion Module - PIR
SKU: B2565
R30.53
No tax
Delivery: 2-5 working days
Delivery: 2-5 working days
PLEASE NOTE: We've moved our retail store - Click here for our new Address
Spend R2,000.00 more and get Free Shipping!
Description:Â

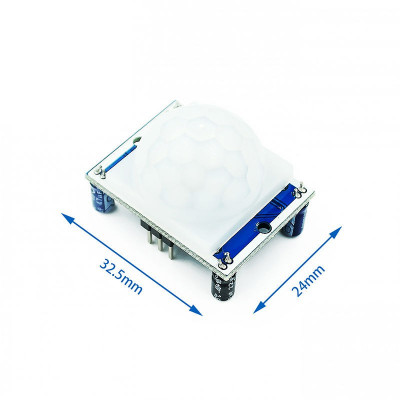

Operating voltage range: DC voltage 4.5-20VQuiescent current: <50uALevel output: High 3.3 V / low 0VTrigger mode: L can not be repeated to trigger /H repeatDelay time: 5-200S (adjustable) can be produced in a few seconds - - - for a few secondsBlocking time: 2.5S (default) can be produced in a few seconds of the range of zero - for a few secondsCircuit board size: 32mm * 24mmInduction angle <100 degree cone angleWorking temperature: Negative 15 to 75 CentigradeInduction lens size Diameter: 23mm
Operating voltage range: DC voltage 4.5-20VQuiescent current: <50uALevel output: High 3.3 V / low 0VTrigger mode: L can not be repeated to trigger /H repeatDelay time: 5-200S (adjustable) can be produced in a few seconds - - - for a few secondsBlocking time: 2.5S (default) can be produced in a few seconds of the range of zero - for a few secondsCircuit board size: 32mm * 24mmInduction angle <100 degree cone angleWorking temperature: Negative 15 to 75 CentigradeInduction lens size Diameter: 23mm
B2565
