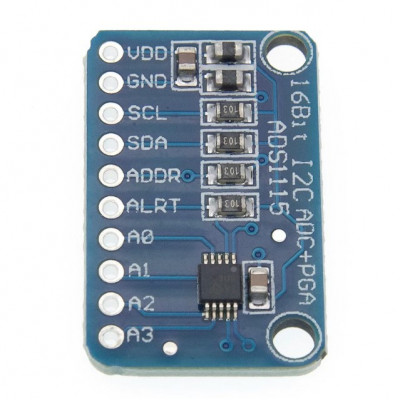

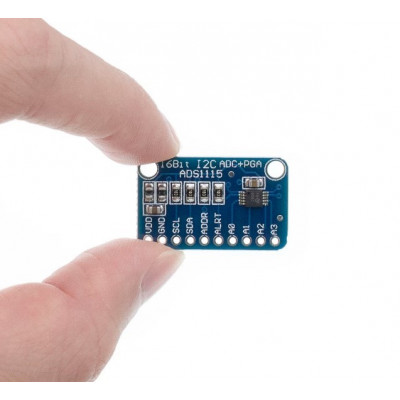

I2C 16 Bit Analog to Digital Module ADS1115

SKU: B2745

R50.00

No tax
Delivery: 2-5 working days

PLEASE NOTE: We've moved our retail store - Click here for our new Address

Spend R2,000.00 more and get Free Shipping!

Description:

Wide supply range: 2.0V to 5.5V bits of resolution offered in an ultra-small, leadless.
Low current consumption: QFN-10 package or an MSOP-10 package. The ADS1113/4/5 are designed with precision, power, and
Continuous Mode: Only 150μA ease of implementation in mind. The ADS1113/4/5
Single-Shot Mode: Auto Shut-Down feature an onboard reference and oscillator. Data is transferred via an I2C-compatible serial interface; four 8SPS to 860SPS I2C slave addresses can be selected.
The ADS1113/4/5 operate from a single power supply ranging from 2.0V to 5.5V.
The ADS1113/4/5 can perform conversions at rates up to 860 samples per second (SPS).
An onboard PGA is available on the ADS1114 and ADS1115 that Pin-Selectable Addresses offers input ranges from the supply to as low as ±256mV, allowing both large and small signals to be (ADS1115) measured with high resolution.
The ADS1115 also features an input multiplexer (MUX) that provides two differential or four single-ended inputs. (ADS1114 and ADS1115)
The ADS1113/4/5 operate either in continuous conversion mode or a single-shot mode that automatically powers down after a conversion and greatly reduces current consumption during idle.
The ADS1113/4/5 are specified from –40°C to +125°C.
