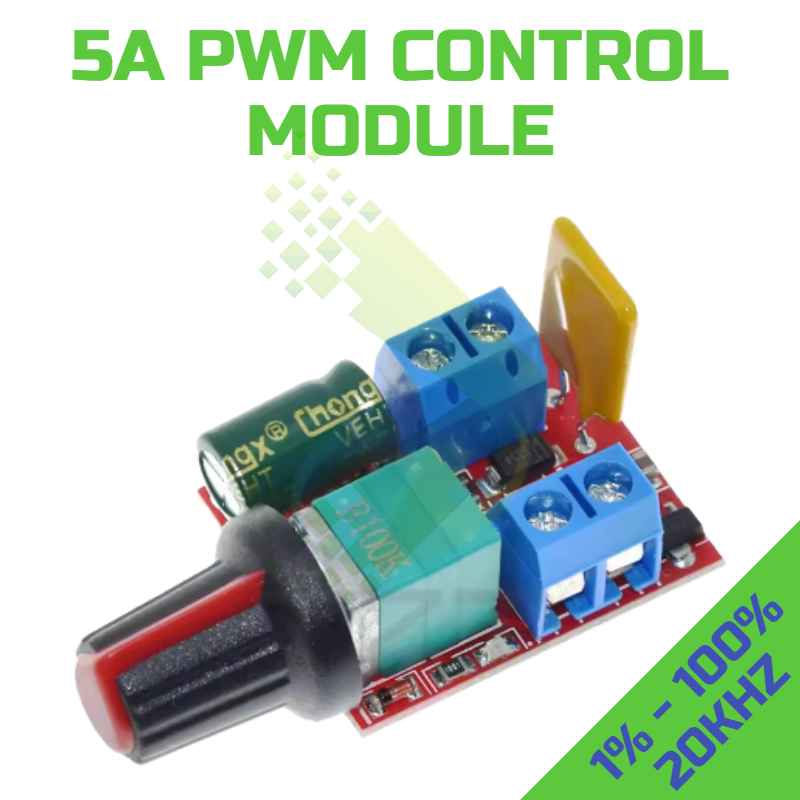

5Amp DC PWM Generator Module 4.5V-35V

The 5A PWM Control Module is a compact and efficient speed controller designed for brushed DC motors. Based on high-frequency Pulse Width Modulation (PWM) technology operating at 20 kHz, this board offers precise, stepless speed control from 1% to 100% duty cycle. It's an excellent choice for hobbyists, educators, and professionals working on motor control projects, robotics, and automation systems. Its wide input voltage range and robust 5A output make it suitable for a variety of DC motor applications.

Key Features:

• Wide Input Voltage Range: DC 4.5V – 35V, compatible with common battery packs and power supplies.
• High Current Capacity: Continuous output current up to 5A, supporting motors with up to 90W power rating.
• Onboard Potentiometer: Large rotary dial for easy, manual speed adjustment without external controllers.
• Screw Terminal Connections: Blue terminal blocks for secure, reliable wire connections to power supply and motor.
• Compact Form Factor: Approximately 30 mm × 26 mm × 14 mm (excluding potentiometer), ideal for space-constrained projects.
• Visual Indicators: Built-in components for status monitoring and debugging.
• Stepless Speed Control: PWM duty cycle adjustable from 1% to 100% for smooth, precise motor speed regulation.
• High-Frequency PWM: 20 kHz switching frequency for quiet, efficient motor operation with minimal audible noise.
• Ultra-Low Standby Current: Approximately 7 µA quiescent current for energy-efficient operation.
• Maximum Output Power: 90W continuous rating suitable for medium-sized brushed DC motors.
• Direct DC Motor Drive: Designed specifically for brushed DC motor speed control applications.
• Important Safety Note: DC input only – do not connect to AC mains voltage (220V AC) as this will destroy the module.

Applications

• Robotics: Speed control for robot drive motors, arms, and actuators.
• DIY Electronics: Motor speed regulation in custom projects and gadgets.
• Educational Use: Teaching PWM principles, motor control theory, and power electronics concepts.
• Home Automation: Fan speed control, ventilation systems, and motorised blinds or curtains.
• Workshop Tools: Variable-speed control for small drills, grinders, and other DC-powered tools.

Why Choose the 5A PWM Control Module? The 5A PWM Control Module delivers reliable, efficient motor speed control in a compact, easy-to-use package. Its wide voltage compatibility, substantial current capacity, and intuitive potentiometer adjustment make it perfect for both beginners learning motor control fundamentals and experienced makers building sophisticated projects. With robust terminal connections and high-frequency PWM for smooth operation, this module is ready to bring precise speed control to your next creation.
