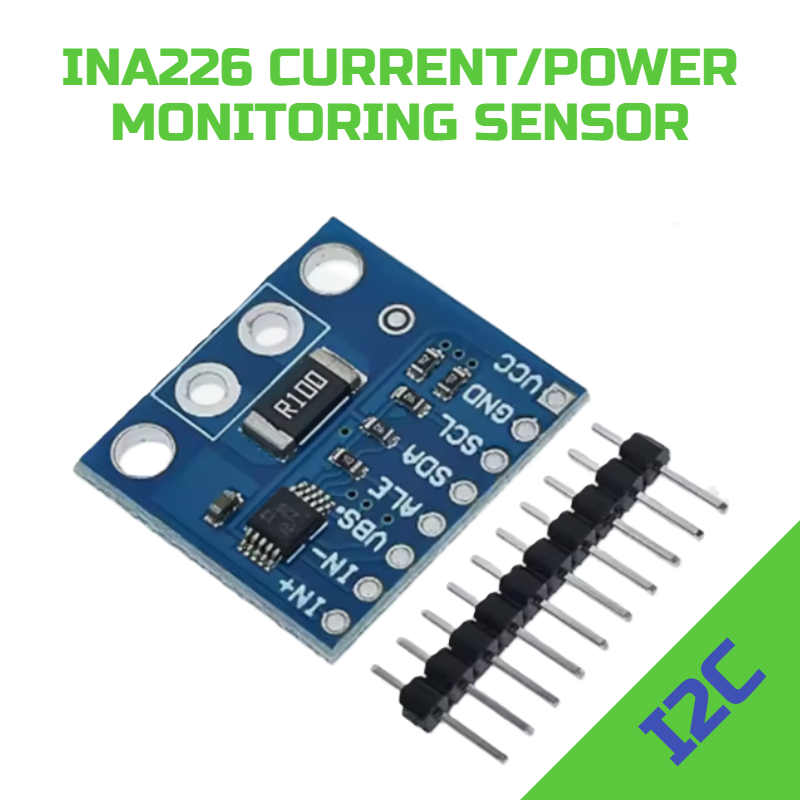

INA226 Current Sensor Module

The INA226 Current/Power Monitoring Sensor Module is a precision measurement platform designed for accurate current, voltage, and power monitoring in electronic systems. Based on the INA226 integrated circuit from Texas Instruments, this compact breakout board provides bi-directional current sensing with high accuracy, making it invaluable for hobbyists optimising power consumption, educators teaching power electronics concepts, and professionals developing battery-powered devices or power management systems. Its I2C interface ensures seamless integration with popular microcontroller platforms for real-time monitoring and data logging applications.

Key Features:

• I2C Interface: Simple two-wire communication protocol for easy integration with Arduino, Raspberry Pi, ESP32, and other development platforms.
• Bi-directional Current Sensing: Monitors current flow in both directions, essential for battery charging/discharging applications.
• High Accuracy: Provides precise measurements suitable for power optimisation and energy monitoring projects.
• Compact Breakout Board: Small form factor with standard 2.54mm pitch header pins for breadboard and PCB mounting.
• Multiple Measurement Capabilities: Simultaneously measures bus voltage, shunt voltage, current, and power.
• Onboard Shunt Resistor: Integrated current sensing resistor (R100) eliminates the need for external components.
• LED Indicator: Built-in status LED for visual feedback during operation.
• Configurable I2C Address: Supports multiple devices on the same I2C bus for multi-channel monitoring.
• Core IC: Texas Instruments INA226 precision current/power monitor.
• Bus Voltage Range: 0V to 36V continuous monitoring capability.
• Current Measurement Range: Depends on shunt resistor value, suitable for milliamp to amp-level sensing.
• 16-bit ADC Resolution: High-precision analogue-to-digital conversion for accurate measurements.
• Programmable Alert Function: Configurable threshold alerts for overcurrent or undervoltage conditions.
• Supply Voltage: 3.3V or 5V compatible for flexible system integration.
• Low Power Consumption: Efficient operation suitable for battery-powered monitoring applications.

Applications

• Battery Management Systems: Monitor charge/discharge cycles and optimise battery life in portable devices.
• Power Consumption Analysis: Measure and log power usage in IoT devices, solar systems, and energy-efficient projects.
• Educational Projects: Teach power electronics, current sensing principles, and data acquisition techniques.
• Robotics: Track motor current draw and overall system power consumption for performance optimisation.
• DIY Electronics: Add professional-grade power monitoring to custom circuits and prototypes.

Why Choose the INA226 Current/Power Monitoring Sensor Module? The INA226 module delivers laboratory-grade measurement accuracy in an affordable, easy-to-use package that works seamlessly with popular development platforms. Its bi-directional sensing capability and I2C interface make it the ideal choice for anyone needing reliable power monitoring, from students learning the fundamentals to professionals designing sophisticated power management solutions. With comprehensive library support and a wealth of online resources, you'll be collecting valuable power data in minutes.
