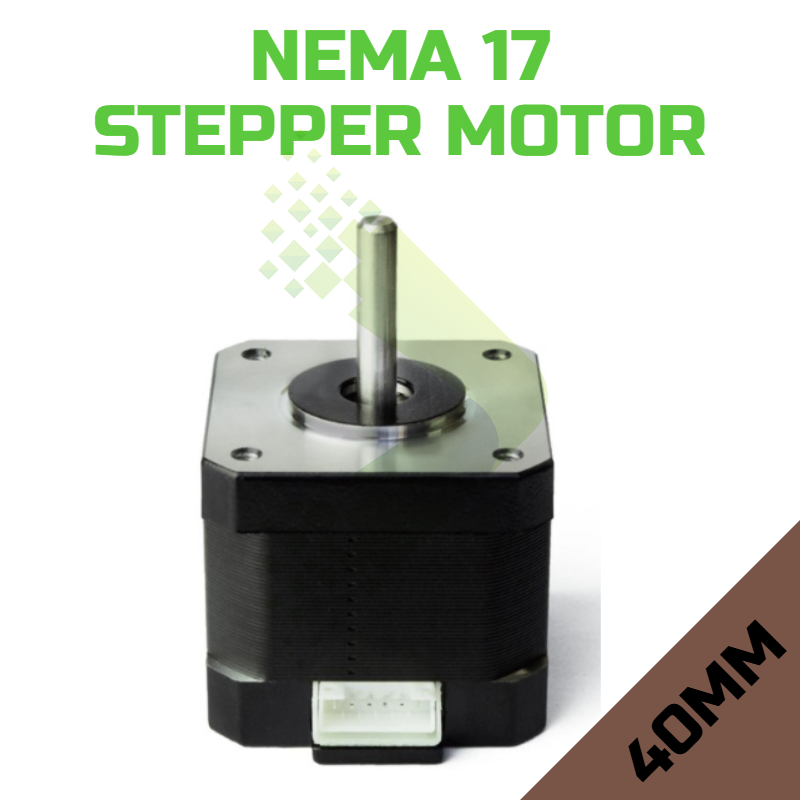

NEMA17 x 40mm Stepper Motor - 17HS4401

SKU: VHZ1841
R249.00
VAT Inclusive
Delivery: 2-5 working days

40mm NEMA 17 Stepper motor 1.8deg/step

Quantity
Wishlist
Compare

Spend R2,000.00 more and get Free Shipping!
Descriptions:
Semi-high torque NEMA17 motor for projects that demands slightly more power. These motors is exceptionally good value for money and is manufactured to ISO standards.
Specifications:
  • Number of phases: 2 phases
  • Step angle: 1.8°
  • Rated voltage: 3.3V DC
  • Rated current: 1.5A
  • Holding torque: 400mN. m Min (two-phase energization)
  • Phase resistance: 2.22 soil 10% (20C)
  • Phase inductance: 3.8mH ± 20% (1kHz1Vrms)
  • Rotor inertia: 57g.cm^2
  • Motor weight: 288g Ref.
  • Insulation resistance: 100MQ Min. (DC 500V)
  • Insulation class: B(130°C).
  • Weight: 0.4kg
  • Step angle: 1.8+5% degrees/step voltage: 12V
  • Current: 1.5A/phase
  • Resistance level: 10.0+10%Q2/phase
  • Inductance value: 20+ 20%MH/phase
  • Bit lead style: AWG26 UL1007
  • Equipped with: 4 leads
  • Holding torque: 48N.cm sensitive
  • Braking torque: 2.6N.cm
  • Rotor torque: 68g.cm2
