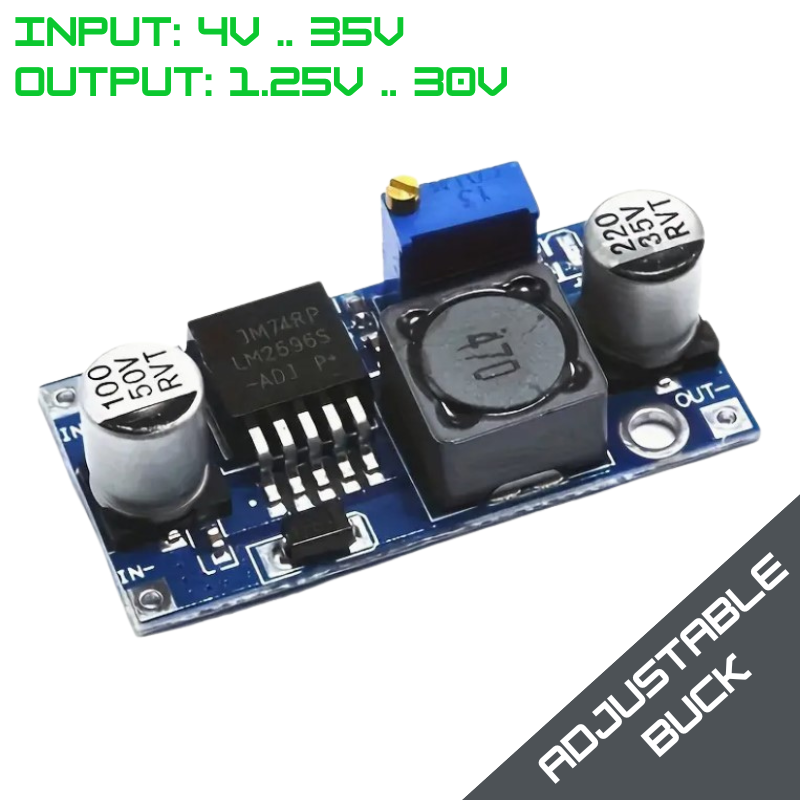

1.25V - 37V Output @ 3A DC-DC 3-40V Input Step Down Adjustable Power Supply 3A peek power, 2A constant current.
37V 3A Adjustable output DC-DC Supply LM2596
SKU: VBZ0105
R20.00
No tax
1.25V - 37V Output @ 3A DC-DC 3-40V Input Step Down Adjustable Power Supply 3A peek power, 2A constant current.
PLEASE NOTE: We've moved our retail store - Click here for our new Address
Spend R2,000.00 more and get Free Shipping!
Specifications:
- Input voltage :3V ~ 40V
- The output voltage : 1.25V ~ 37V
- Output Current :3A (3A peek < 1Minute - 2A Constant Max)
- Conversion efficiency:92%( MAX )
- Output ripple: <30mV
- Switching frequency: 150KHz
- Working temperature: -forty Five~ +85
- Size :43mm * 21mm * 14mm(Long*Width*Hight)
Features:
1. the range of input voltage: 3V to 40 V dc (input voltage must be 2V higher than Output to regulate the output voltage).
2. the range of output voltage: 1.25 V dc to 37 V voltage adjustable, high efficiency (92%) largest maximum output current is 3A.
