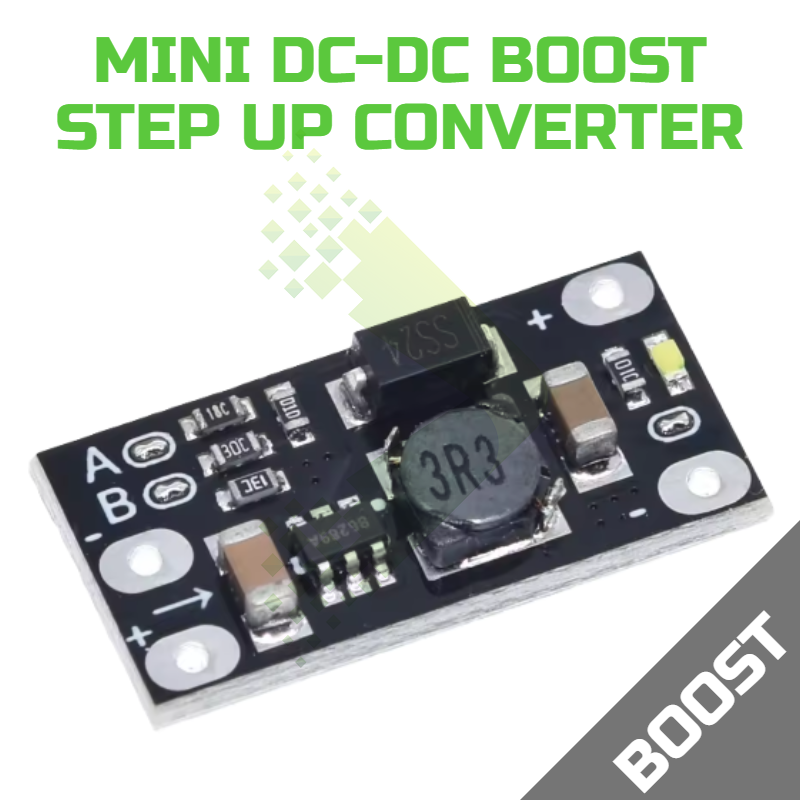

Mini DC-DC Boost Step Up Converter

The Mini DC-DC Boost Step Up Converter is a compact and efficient power management module designed to step up lower DC voltages to higher output levels. Based on a high-frequency switching regulator design with an inductor marked "3R3" (3.3µH), this board is perfect for hobbyists, makers, and engineers who need reliable voltage boosting in space-constrained applications. Whether you're powering LEDs, sensors, or microcontroller projects from batteries, this converter delivers stable performance in a tiny footprint.

Key Features:

• Compact Design: Ultra-small PCB footprint (approximately 20mm x 10mm), ideal for integration into tight spaces and portable projects.
• Input Voltage: 2.5V Min
• Selectable Output Voltage: 5V / 8V / 9V /12V
• Boost Converter Topology: Steps up input voltage to higher output voltage with high efficiency.
• Clear Terminal Markings: Input terminals marked "A" and "B" with polarity indicators (+/-) for easy connection.
• Output Terminals: Clearly marked output pads with polarity symbols for straightforward wiring.
• Breadboard and Prototype Friendly: Through-hole mounting pads allow for easy soldering and integration into prototypes.
• LED Indicator: On-board power indicator LED for visual confirmation of operation.
• 3.3µH Inductor: High-quality shielded inductor (marked "3R3") for efficient energy storage and transfer.
• SMD Component Construction: Surface-mount resistors, capacitors, and semiconductors ensure reliability and compact size.
• Input Capacitors: Multiple capacitors for input filtering and stable operation.
• Output Capacitors: Dedicated output filtering capacitors for clean, stable output voltage.
• MOSFET Switching Element: Integrated switching transistor for efficient DC-DC conversion.
• Black PCB: Professional-grade solder mask with clear white silkscreen labelling.

Applications

• Battery-Powered Projects: Boost voltage from single-cell or low-voltage battery packs to power 5V or higher circuits.
• LED Lighting: Drive LEDs requiring higher forward voltages from lower-voltage power sources.
• Sensor Systems: Provide stable power rails for sensors and modules in portable and embedded applications.
• DIY Electronics: Ideal for hobbyist projects requiring voltage conversion in compact form factors.
• Educational Use: Excellent teaching aid for demonstrating DC-DC conversion principles and power electronics.

Why Choose the Mini DC-DC Boost Step Up Converter? This converter combines high efficiency, compact size, and ease of use in a robust package that's perfect for both prototyping and final implementations. Its clear labelling and straightforward design make it accessible to beginners, whilst its reliable performance meets the demands of professional applications. Get yours today and power your projects with confidence.
