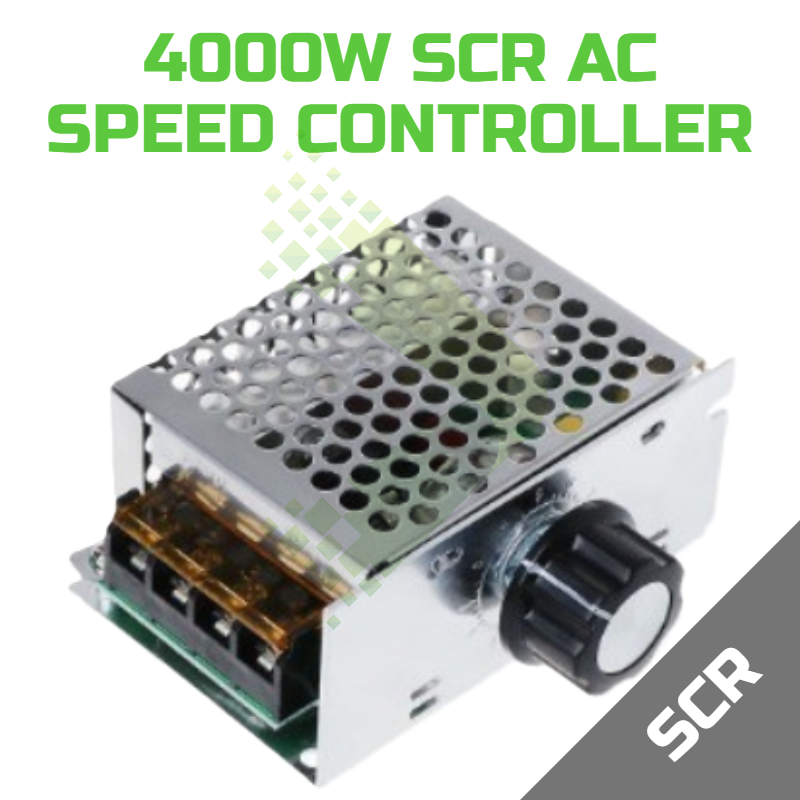

4000W AC 220V SCR Silicon Controlled Electronic Speed Control

The 4000W AC 220V SCR Electronic Speed Controller is a dial that controls how much power reaches a mains appliance. Turn it down and a power tool runs slower, a heating element runs cooler, a lamp dims. Turn it up and you get full power. Built around the heavy-duty BTA41-600B 40A triac mounted on a large heatsink, this unit is supplied ready to use in a ventilated enclosure. Wire your supply in, wire your appliance out, and turn the dial.

How It Works

Mains electricity is not steady. It is a wave that rises and falls fifty times every second. This controller works by allowing only part of each wave through to your appliance.

Turn the dial one way and most of each wave passes through, so the tool runs at full speed and the element runs hot. Turn it the other way and only a sliver gets through, giving less power, slower running, and a cooler element. Everything in between is available, smoothly and continuously.

The switching is handled by a semiconductor called a triac, in this case a BTA41-600B rated at 40A and 600V. It switches on and off a hundred times a second with no moving parts, no contacts to burn out, and no clicking. It is the same principle as the dimmer switch on your wall, scaled up to handle serious loads.

Key Features:

• Continuously Variable Control: Rotary dial gives smooth adjustment from minimum through to full power, with no steps, stages, or clicks.
• Ready To Use: Supplied fully housed in a ventilated enclosure. No building it into something first, and nothing exposed that should not be.
• BTA41-600B Triac: Heavy-duty switching device rated at 40A and 600V, comfortably above the demands of normal operation.
• 1000W Continuous Rating: Handles a full kilowatt of sustained load, rated conservatively for long service life rather than headline figures.
• 4000W Peak Capability: (MAX < 1 Second) Absorbs the brief inrush surge drawn by motors starting up and heating elements coming on from cold.
• Large Heatsink: Substantial finned heatsink keeps the triac cool during extended operation, mounted for good thermal contact.
• Solid State Switching: No relays, no moving parts, and no contacts to burn or pit. Completely silent in operation with nothing to wear out.
• Screw Terminal Connections: Secure input and output terminals accepting standard mains cable.
• 220-240V AC Operation: Suitable for standard South African mains supply at 50Hz.
• Instant Response: No warm-up period and no settling time. Adjustment takes effect immediately.
• Wide Adjustment Range: Useful control from a gentle trickle right through to full mains power.

Applications

• Soldering and Hot Wire Tools: Set a precise working temperature on soldering irons, hot wire foam cutters, and pyrography pens.
• Power Tool Speed Control: Slow down drills, routers, angle grinders, and bench grinders for delicate work, soft materials, or polishing.
• Heating Element Control: Regulate kilns, workshop heaters, brewing and distilling elements, drying cabinets, and incubators.
• Workshop and Display Lighting: Dim incandescent and halogen lighting smoothly to any level.
• Craft and Sewing Machines: Fine speed control for machines fitted with brushed motors.
• Test and Development Work: Vary the supply to a load whilst measuring its behaviour across a range of power levels.

Suitable Loads

• Heating Elements: Soldering irons, hot wire cutters, kilns, heaters, brewing elements, and drying cabinets.
• Brushed Motors: Also called universal motors. Electric drills, routers, angle grinders, sewing machines, vacuum cleaners, and bench grinders.
• Incandescent and Halogen Lighting: Traditional filament lamps of any wattage within the rating.

Important: Loads This Controller Cannot Be Used With

• Induction Motors: Most ceiling fans, pond pumps, compressors, and extractor fans. Reducing the voltage does not slow these motors down properly. It causes them to run hot, lose torque, and stall.
• LED and CFL Lighting: These will flicker, buzz, or simply refuse to dim, and many will be damaged by the chopped waveform.
• Electronic Power Supplies: Televisions, laptops, phone chargers, and most modern appliances with a switch-mode supply inside.
• Transformers: Phase-angle control can drive a transformer into saturation.

The simple rule is this: if it gets hot, or if it has brushes and a commutator, this controller will regulate it beautifully. If it has electronics inside, it will not. Checking this before you order will save you a great deal of frustration.

Specifications

• Supply Voltage: 220-240V AC, 50/60Hz
• Continuous Load: 1000W
• Peak Load: 4000W (MAX < 1 Second)
• Switching Device: BTA41-600B triac, 40A / 600V
• Triac Surge Rating: 400A non-repetitive
• Control Method: Phase-angle regulation via rotary potentiometer
• Cooling: Large finned heatsink in a ventilated enclosure
• Connections: Screw terminals, input and output

About The Power Rating

This unit is rated 1000W continuous and 4000W peak, and the difference between those two figures is worth understanding.

Motors and heating elements draw a large surge when they first start, often several times their running current, but only for a fraction of a second. The controller absorbs that comfortably. Sustained load is a different question, because what limits any controller of this type over time is heat rather than switching capacity.

The triac itself is rated at 40A, far above what the unit is asked to do here. The 1000W continuous figure is deliberately conservative, chosen so the unit runs cool and unstressed rather than sitting at the edge of its capability. Keep your intended load within it and it will give years of service.

Installation and Safety

• Mains Voltage Device: This unit switches live mains. Installation should be carried out by somebody competent to work with mains wiring.
• Fuse Protection: Fit an appropriately rated fuse or circuit breaker on the supply side, sized to suit your load.
• Airflow: Mount the unit where air can circulate freely around the enclosure. Do not fit it inside a sealed box.
• Matched Loads: Match the controller to a specific, suitable appliance. It is not intended as a general purpose dimmer on an extension lead.
• Isolate Before Working: Always disconnect the supply before wiring, mounting, or adjusting anything.

Why Choose the 4000W SCR Electronic Speed Controller? Solid state power control has long been the sensible alternative to fixed switches and mechanical speed controls, and this unit brings it in a finished, ready-to-install package. The oversized BTA41-600B triac and large heatsink mean it runs cool and unstressed at its rated load rather than being pushed to its limit, and the ventilated enclosure means it arrives ready for the job instead of needing to be built into something first. Whether you are dialling in the perfect soldering iron temperature, slowing a router for a delicate cut, or holding a kiln at a steady heat, this controller delivers smooth, silent, reliable power control at an accessible price point.
