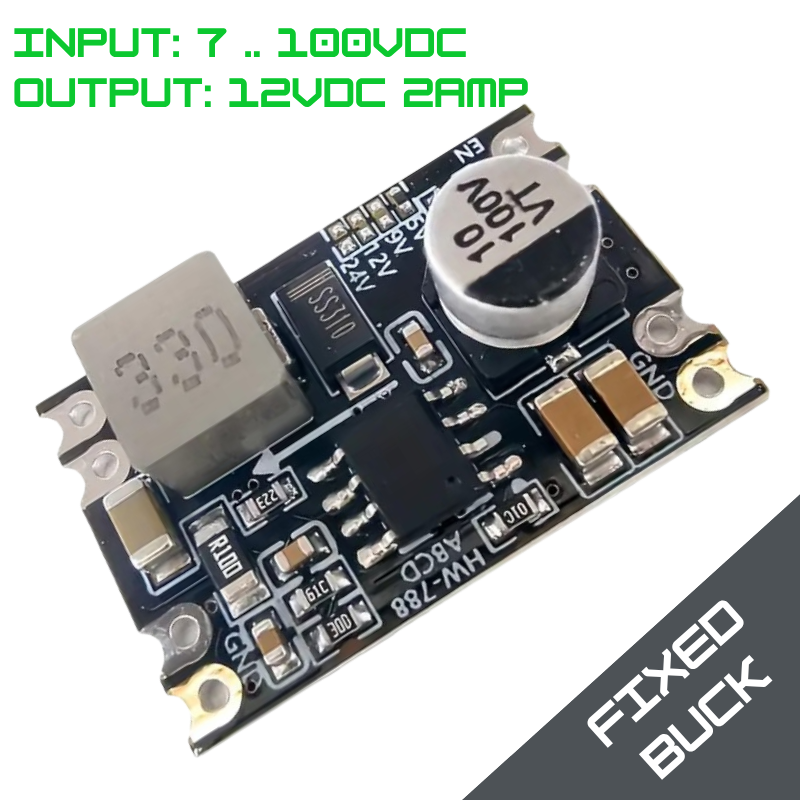

DC-DC Buck Regulator 7-100V to 12V 2A

The DC-DC voltage reduction module is designed to transform high direct current into lower voltage energy.  It utilizes microelectronics technology, ensuring high efficiency and a small footprint. User-friendly and straightforward to install.

NOTE: The ON/OFF terminal has Positive ON Level. Connect ON pin to input voltage for Auto-On.

CAUTION: Voltagees above 50VDC is dangerous. Use with caution.

Key Specifications:

• Fixed outputs: 12V DC
• Input range: 14-100V
• Protection: Overheating and Overload shutdown
• Maximum output current: 3A, with a sustained current limit of 2A
• Highest conversion efficiency: 96%
• Output ripple: Less than 30mA
• Output accuracy: ± 0.1V
• No-load current: < 1.2mA
• Operating temperature: -25 °C to +85 °C
• Operating humidity: 20% and 90%
• Dimensions: 25.5mm X 16.5mm X 7mm
• Operating frequency: 1MHz.
• Lifespan: 35,000 hours without failures.
