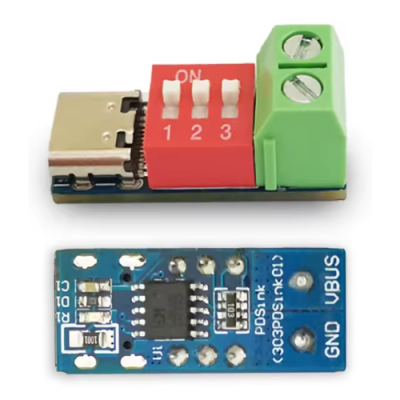

5~20V QC PD Fast Charging Test Board

Product Features

The PD decoy supports boost fast charging protocols such as PD3.0/2.0 and BC1.2, with a maximum power of 100W, and provides functions such as over temperature and over voltage protection.

The voltage can be adjusted through a dip switch, with a maximum output voltage of 20V.

Supports fast charging protocols such as PD3.0/2.0, BC1.2, etc

Supports USB Type-C PD, positive and negative plug detection, and automatic switching

Supports input voltage from 4V to 22V

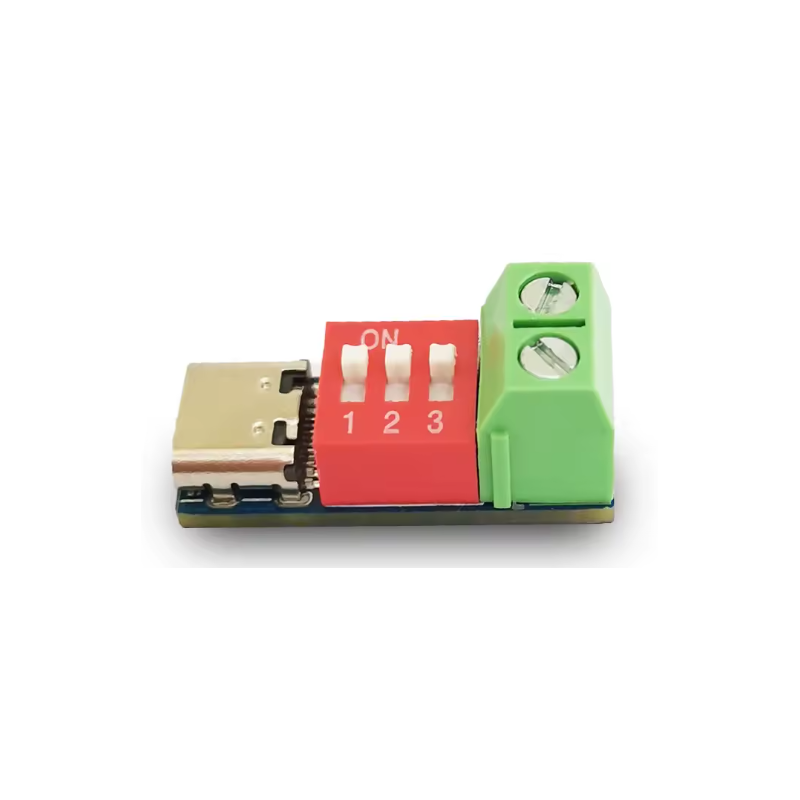

Instructions for use

CFG1 corresponds to dip switch 1

CFG2 corresponds to dip switch 2

CFG3 corresponds to dip switch 3

To dial down is 0, to dial up is 1 (on the ON side).

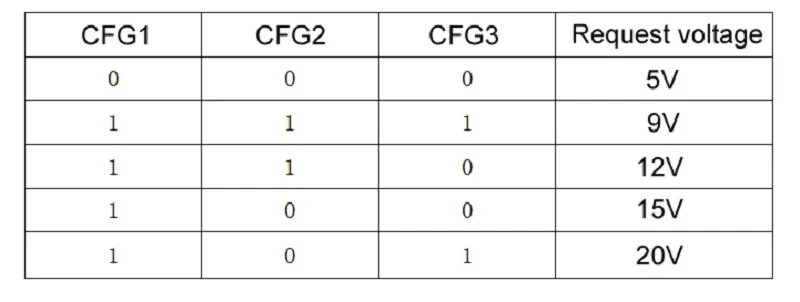

The toggle switch can request the corresponding voltage according to the charger protocol
