3V3 1A Fixed Buck Regulator LM78xx Replacement

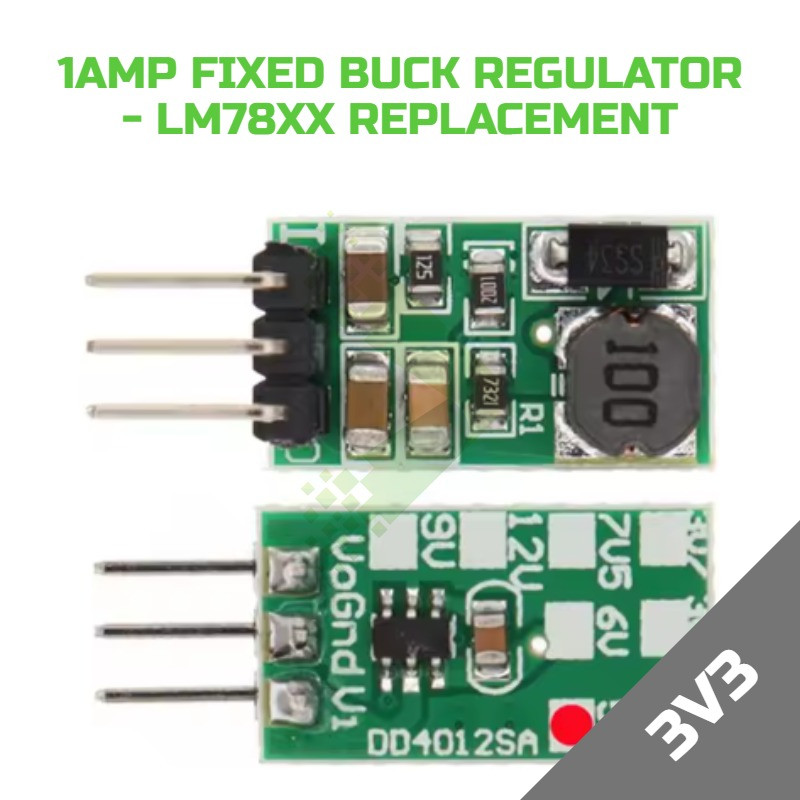

The 1Amp Fixed Buck Regulator is a compact and efficient power supply module designed as a modern replacement for traditional LM78xx linear regulators. Based on a switching buck converter topology and featuring the DD4012SA controller IC, this board delivers a fixed 3.3V output with significantly improved efficiency compared to linear alternatives. It's an excellent choice for hobbyists, makers, and professionals looking to power microcontrollers, sensors, and other 3.3V devices while minimising heat dissipation and maximising battery life in portable applications.

Key Features:

• Fixed 3.3V output voltage, ideal for modern microcontrollers and sensors
• 1A continuous output current capacity
• Buck converter topology for high efficiency and reduced heat generation
• Wide input voltage range (typically 4.5V to 24V), accommodating various power sources
• Compact PCB design (approximately 17mm x 10mm) for easy integration
• Through-hole pin headers for breadboard compatibility and secure connections
• On-board inductor and filter capacitors for stable output
• Drop-in replacement for LM7833 and similar linear regulators with superior performance
• No heatsink required for typical loads due to efficient switching operation

Features:

• Controller IC: DD4012SA switching regulator
• Output voltage: 3.3V fixed
• Maximum output current: 1A continuous
• Switching frequency: High-frequency PWM operation for compact component sizing
• On-board power inductor for energy storage and filtering
• Input and output filter capacitors for ripple reduction
• Three-pin configuration: Input (5V GND), Ground (GND), and Output (3V OUT)
• Efficiency: Typically 85-95% depending on input voltage and load conditions
• Operating temperature range suitable for standard electronics applications
• Integrated over-current and thermal protection (IC-dependent)
• PCB construction with clear terminal labelling for easy identification
• Solder-ready through-hole pins for permanent installation

Applications

• Microcontroller Projects: Powering ESP32, ESP8266, STM32, and other 3.3V MCU platforms
• Battery-Powered Devices: Efficient power conversion for portable electronics and remote sensors
• IoT Solutions: Low-power operation for connected devices and wireless modules
• Embedded Systems: Replacement for inefficient linear regulators in compact designs
• DIY Electronics: Ideal for hobbyist projects requiring stable 3.3V power rails

Why Choose the 1Amp Fixed Buck Regulator? This modern buck converter offers a significant performance advantage over traditional linear regulators, delivering the same stable 3.3V output with far less wasted energy and heat. Its compact size, ease of use, and reliable operation make it the smart choice for any project requiring efficient 3.3V power. Whether you're building battery-powered IoT devices or upgrading existing designs, this regulator provides the performance you need with the simplicity you want.
