CC1101 Transceiver Module With IPEX RF connector

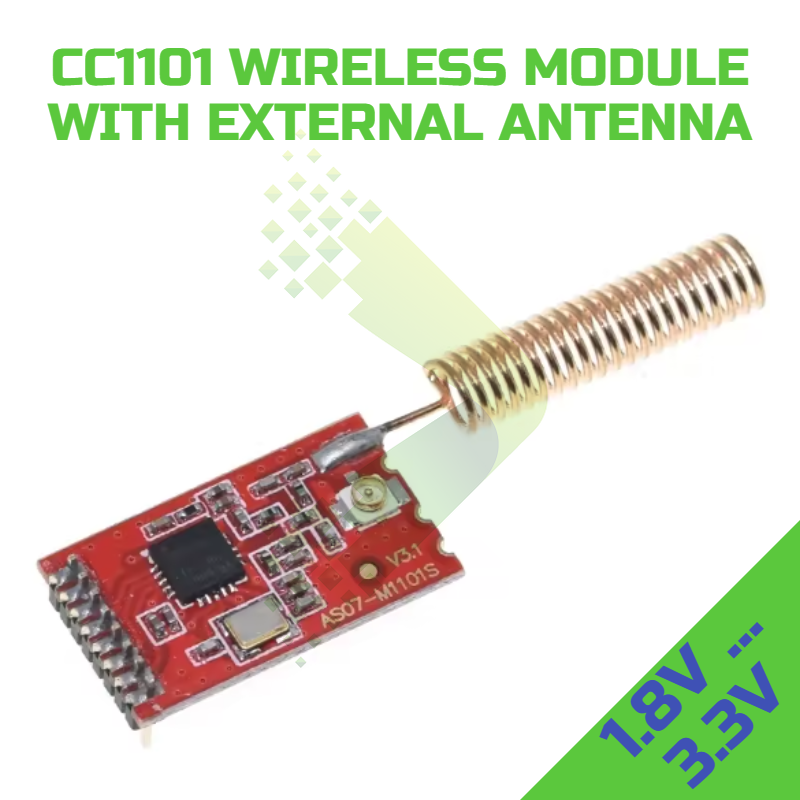

The CC1101 Wireless Module is a highly versatile sub-1GHz RF transceiver module designed for low-power wireless communication applications. Based on the Texas Instruments CC1101 RF transceiver chip, this compact red PCB module features an integrated spring antenna and IPEX external antenna interface, making it ideal for hobbyists, students, and engineers developing wireless sensor networks, remote control systems, and IoT devices. Its flexible configuration options and excellent RF performance make it suitable for a wide range of short-range wireless communication projects.

Key Features:

• Integrated Spring Antenna: Built-in helical spring antenna for immediate use without external antenna requirements.
• IPEX External Antenna Interface: Connector for attaching external antennas to extend range and improve signal quality.
• Compact Module Design: Small red PCB form factor (approximately 24mm x 14mm) with pin headers for easy breadboard integration.
• Low Power Consumption: Ideal for battery-powered applications requiring extended operational life.
• Easy SPI Interface: Simple 4-wire SPI communication for straightforward integration with microcontrollers.
• Dual Antenna Options: Flexibility to use either the on-board spring antenna or external antenna via IPEX connector.
• Status LED: On-board indicator for visual feedback during operation and debugging.
• RF Transceiver: Texas Instruments CC1101 chip, supporting bidirectional wireless communication.
• Frequency Range: Sub-1GHz operation (300-348MHz, 387-464MHz, and 779-928MHz bands depending on configuration).
• Data Rate: Programmable from 0.6 to 500 kbps.
• Modulation Formats: Supports 2-FSK, GFSK, MSK, OOK, and ASK modulation schemes.
• Output Power: Programmable up to +12dBm depending on frequency band.
• Receiver Sensitivity: Excellent sensitivity of -112dBm at 1.2 kbps.
• Supply Voltage: 1.8V to 3.6V operation.
• Integrated Features: Built-in packet handling, data buffering, burst transmissions, clear channel assessment, and link quality indication.
• Wake-on-Radio Function: Ultra-low power polling mode for battery-operated applications.

Applications

• Wireless Sensor Networks: Perfect for environmental monitoring, agricultural sensors, and industrial data collection systems.
• Home Automation: Ideal for building wireless lighting controls, security systems, and smart home devices.
• Remote Control Systems: Suitable for RC vehicles, drones, and remote-operated equipment.
• IoT Projects: Excellent choice for developing low-power, long-range IoT applications and mesh networks.
• Educational Use: Great for teaching wireless communication principles and embedded system development.

Why Choose the CC1101 Wireless Module? The CC1101 Wireless Module combines the proven performance of the Texas Instruments CC1101 transceiver with a convenient, ready-to-use module format. With both integrated and external antenna options, excellent range capabilities, and low power consumption, it provides everything you need to get started with sub-1GHz wireless communication. Whether you're building your first wireless sensor or developing a sophisticated IoT network, this module offers the flexibility and reliability to bring your project to life.
