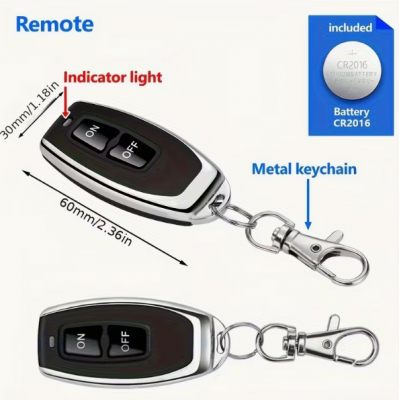

Wireless remote control switch

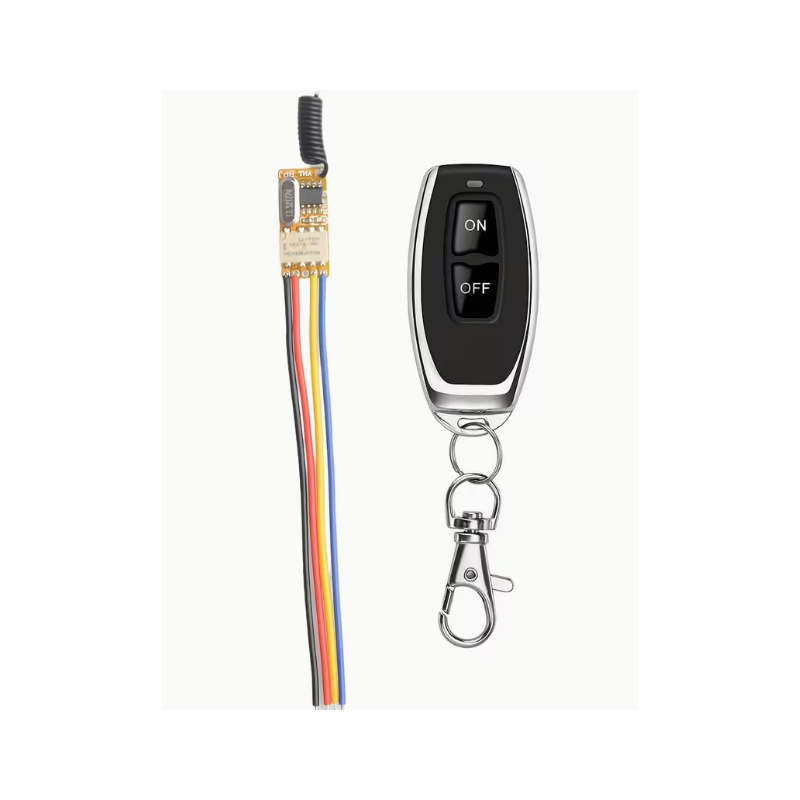

About Receiver:

Model No.: BPJ

1. Working voltage: DC3.7V-12V

2. Quiescent Current: 6mA

3. Working temperature: -40 Degree +80 Degree

4. Receiver sensitivity: more than -110dBm

5. Working frequency: 433mhz

6. Relay Working Current: 30-35ma

7. Working Mode: Momentary Toggle Latched adjustable

8. Max load current: Max Load: 1A (have better Load less than 700ma)

9. Size: 25*11*8MM

10. Encoding Type: Learning Dot to add Transmitter

About Working way:

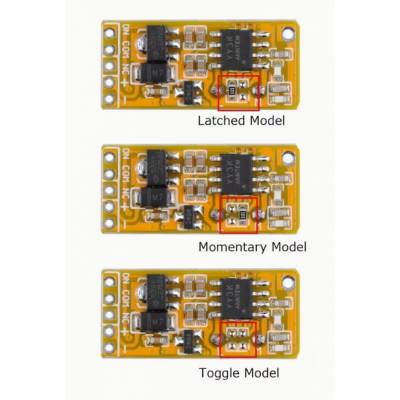

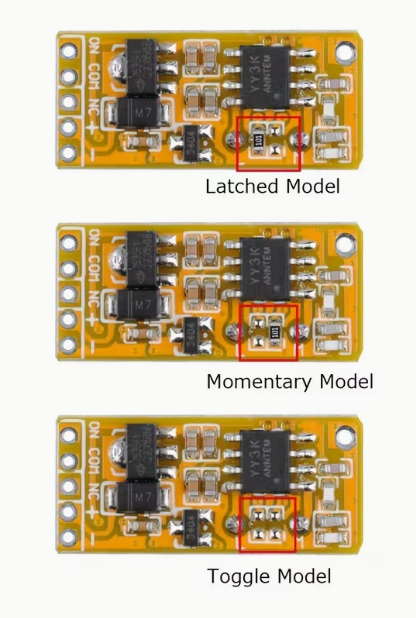

Working way changed by resistance on PCB

Latched: Connect the left side 2 points (L) Relay:Press -> On; Press other button -> Off.

Momentary: Connect the right side 2 points (M) Relay: Press and hold -> On; Release -> Off.

Toggle: Let Point L and Point M in non-occupation Relay: Press -> On; Press same button again -> Off·

About Learning and clearing Method:

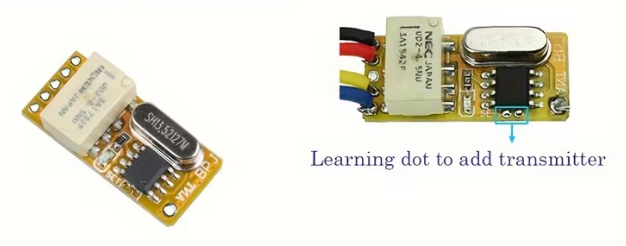

Latched: Input 3.5V-12V for the Receiver, Connect the Learning Dot, The receiver LED indicator ON. Press remote button A(ON) 1 time, LED indicator flash for 3 times, Then Press remote button B(OFF) 1 time, LED indicator flash for 3 times again, it mean learning successfully.

Momentary / Toggle: Input 3.5V-12V for the Receiver, Connect the Learning Dot, The receiver LED indicator ON. Press remote button 1 time, LED indicator flash for 3 times, Then Press remote button 1 time again, LED indicator flash for 3 times again, it mean learning successfully.

Clearning: Connect the Learning Dot 5 seconds. Until the receiver LED indicator From ON to OFF, it mean Clearing Code
