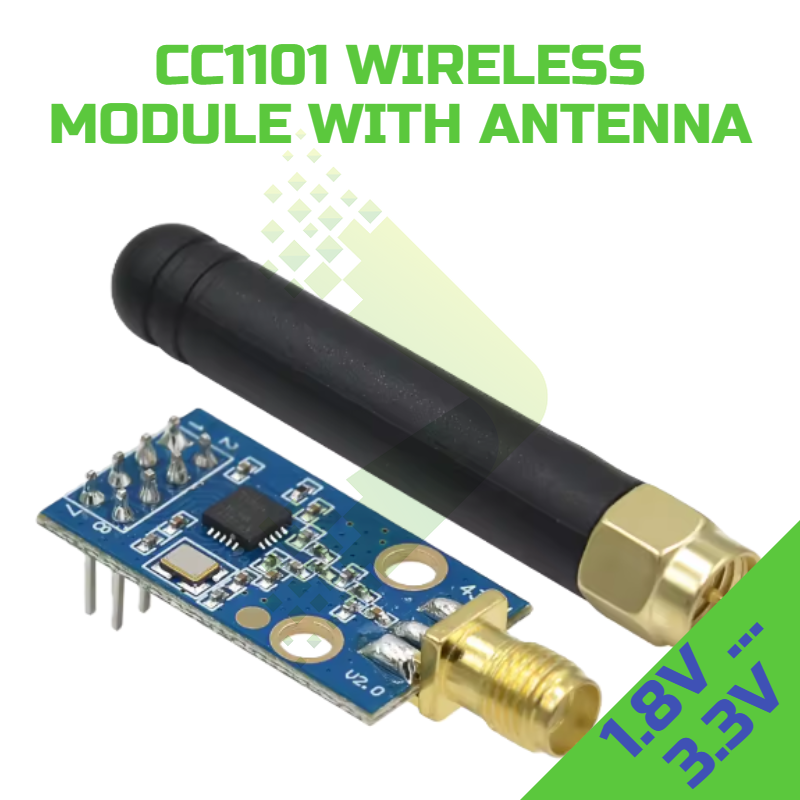

CC1101 Transceiver Module with SMA Antenna

The CC1101 Wireless Module with SMA Antenna is a versatile wireless transceiver solution designed for short-range wireless communication applications. Based on the Texas Instruments CC1101 RF transceiver IC, this module provides a complete wireless communication platform with an integrated SMA connector and included antenna. It's an excellent choice for hobbyists, educators, and professionals developing IoT devices, remote control systems, and wireless sensor networks where reliable sub-1GHz communication is essential.

Key Features:

• Complete wireless solution with SMA antenna connector and detachable antenna included
• Compact PCB module with standard pin header interface for easy breadboard prototyping
• SMA gold-plated RF connector for secure antenna connection and flexibility to use custom antennas
• Standard pin-out configuration providing access to power, ground, and communication interfaces
• Onboard crystal oscillator for stable RF operation
• Multiple communication interface support including SPI for microcontroller connectivity
• Visual indicators for power and operational status monitoring
• Based on Texas Instruments CC1101 ultra-low power sub-1GHz RF transceiver
• Multi-frequency support: 300-348MHz, 387-464MHz, and 779-928MHz operation bands
• Programmable data rates from 0.6 to 500 kbps
• Excellent receiver sensitivity and robust communication performance
• Digital RSSI output for signal strength monitoring
• Support for multiple modulation formats: ASK, OOK, FSK, GFSK, and MSK
• Low power consumption with multiple power-saving modes
• Operating voltage range suitable for 3.3V microcontroller systems
• Integrated packet handling and data buffering capabilities
• Wake-on-radio functionality for battery-powered applications

Applications

• IoT Projects: Ideal for building wireless sensor networks and smart home automation systems
• Remote Control Systems: Perfect for developing RC controllers and wireless command applications
• Educational Use: Excellent platform for teaching wireless communication principles and RF engineering
• DIY Electronics: Suitable for hobbyist projects requiring reliable point-to-point or multi-node wireless communication
• Home Automation: Can be used for wireless switches, environmental monitoring, and security systems

Why Choose the CC1101 Wireless Module with SMA Antenna? This complete wireless transceiver solution combines the proven CC1101 chipset with the convenience of an integrated antenna system, making it straightforward to add robust wireless communication to your projects. The SMA connector provides flexibility to upgrade or replace the antenna for different range requirements, while the module's comprehensive feature set and low power consumption make it ideal for both prototyping and production applications. With extensive community support and readily available libraries for popular microcontroller platforms, you can quickly integrate wireless connectivity into your next innovation.
