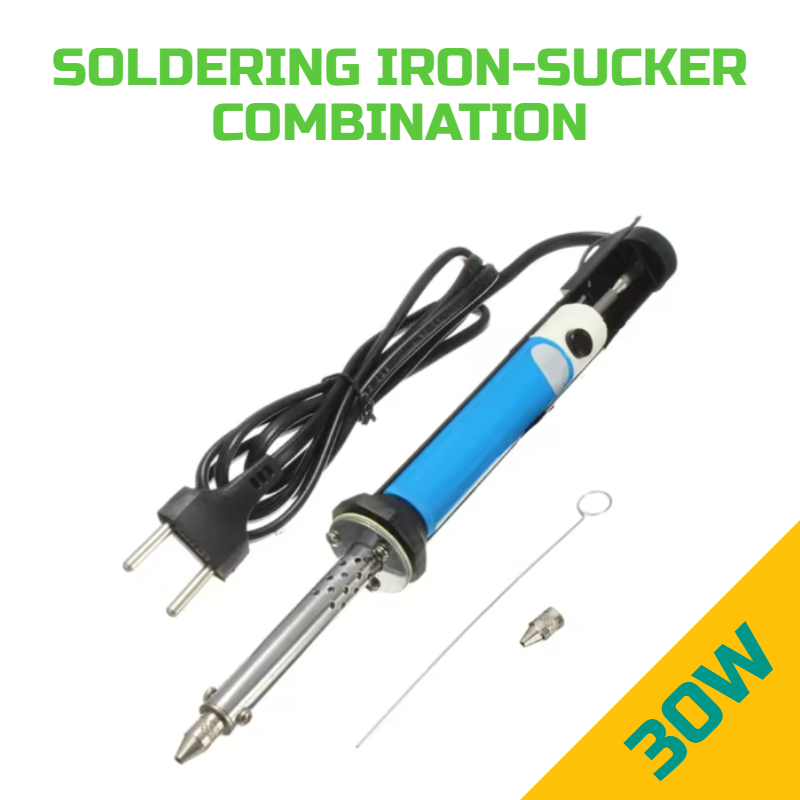

Solder Iron-Sucker combination

XS-842A dual electric suction tin has a beautiful appearance, novel structure , easy to use and clean tin suction characteristics , it can be easily taken down incumbent components from the circuit board, but will not damage the components and circuit boards. For replacement of integrated circuits, switches and other multi- leg advantage is more prominent. This suction tin soldering iron can be used for general use , defense , scientific research, communications, aerospace, computer , radio, television and electronic professional maintenance staff and an indispensable tool for the majority of radio amateurs.

Key Features:

• 220V-240V 50Hz
• Power 30W
• 2 nozzle sized and cleaner included

Usage Instructions:

1. Power On -> preheating for 3-5 minutes
2. Push the piston handle until it "Click" in.
3. Allign the tip with the soldering joint
4. Hold the tip against the joint until the solder melts
5. Press the control button To release the sucktion pump.
6. Repeat process for next solder joint

Precautions:

1. Often remove impurities entering the pump nozzle and solder inside , and apply a little oil to the piston
2. After each use, push the piston 3-4 times to remove residual solder
3. On the first use of a new unit the heating element may produce a slight smoke, This is normal and will naturally disappear.
