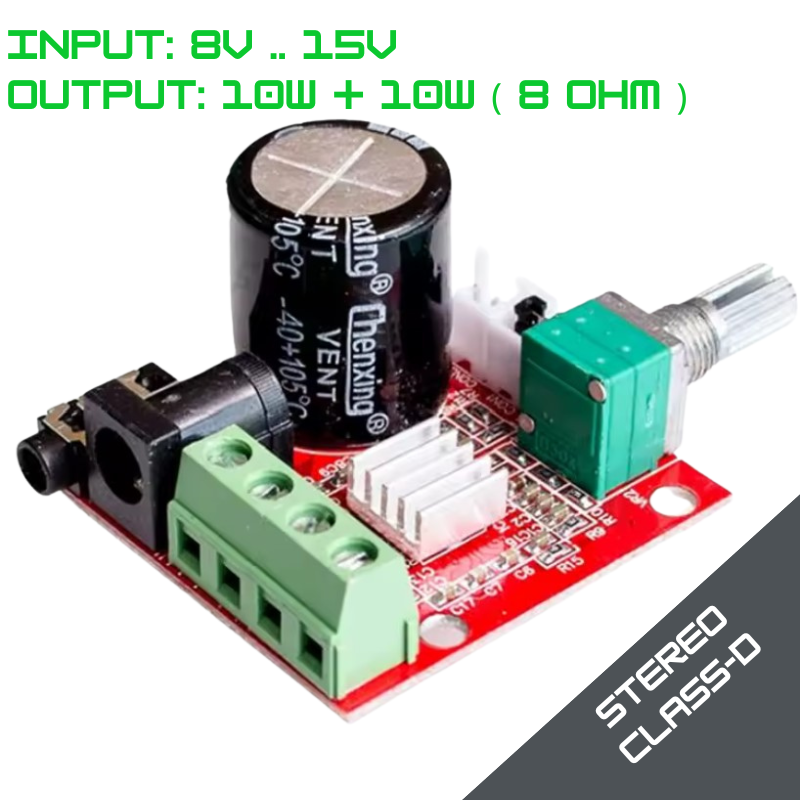

2x10W Class-D Power Amplifier Board (PAM8610)

10W class-D stereo audio amplifier, 10W+10W output power into an 8Ω speaker load and 12V power supply. Offers low THD+N, high-quality sound reproduction, high efficiency: 90%. Operate on any voltage from 7.5V to 15V. High efficiency and low cost achieved by CMOS class D amplifier design.

For DIY design, requiring a miniature audio amplifier, portable and mobile applications operating on battery power.

Key Features:

– Size: Approx. 40 ×40 ×22 mm/ 1.57 ×1.57 ×0.87 inch, including volume control knob

– Volume control potentiometer shaft diameter: Approx. 6mm/ 0.24 inch

– Output power: 10W+10W, 8Ω

– Frequency response: 20Hz to 50KHz

– Amplifier class: D

– Operating voltage: 7.5 – 15V DC

– Recommended supply voltage: 12V, the connector center PIN is +

– Quiescent Current: 20mA

– Speaker Load: 4-8 Ohms, 8Ω recommended, screw terminal connectors

– Noise canceling circuit built into the amplifier board

– Screw terminals for easy speaker connection – no soldering needed

– No popping noise when Power on/ off

– Power switch and mute switch connectors and volume control potentiometer

– Short-circuit current protection: under-voltage lockout and over-temperature protection (shuts down at an internal temperature of 140C±15C)
