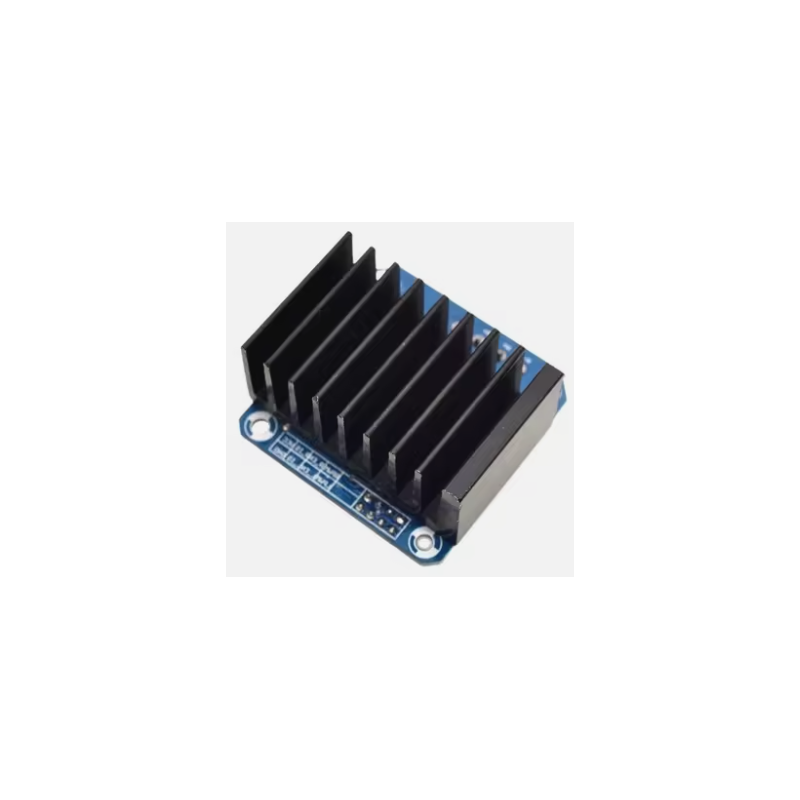

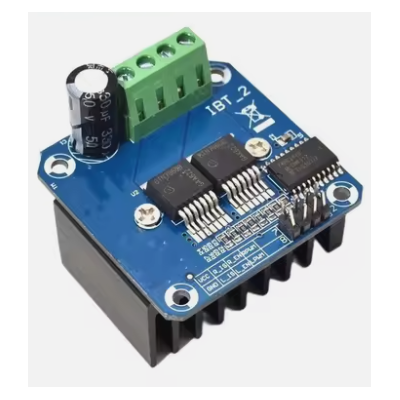

BTS7960 43A High-power Motor Driver Module

Description:

Model: ibt-2

lnput voltage: 6V~27V

Maximum current: 43A

Input level: 3.3V~5V

Control mode: PWM or level

Duty cycle: 0 ~100%

Current conditioning output:Yes

Size: 5 * 5 * 4 cm(L*W*H)

Product characteristics

1.Double BTS7960 high current (43A)H bridge drive.

2.Isolated from the single chip 5V,effectively protect the single chip.

3.Can realize the positive motor reversal,two PM input maximum 25KHZ frequency.

4.two passing current overheat error signal output.

5.Isolated chip 5V power supply(can share 5V with MCU).

6.Power supply voltage:5.5 to 27V.
