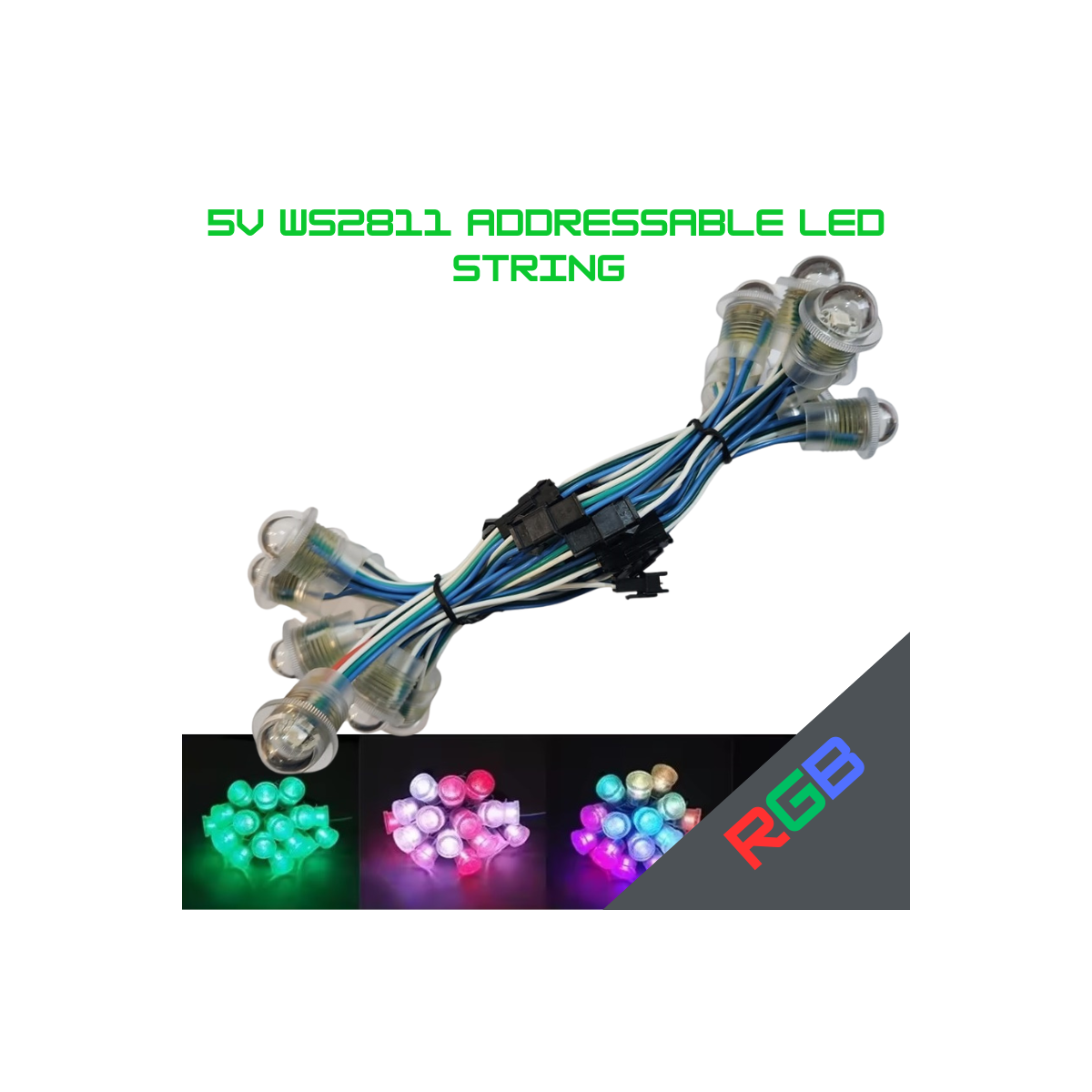

NeoPixel Pods is the easyest way to brighten up a product or to display status massages on equipment. Make a large voltage bar or build a large time display. Fully waterproof for outside use, the possabilities is endless.

Design Considerations:

• Every Pod comes with 2 JST 3-Pin connectors.
• Build a "chain" to address multipole LED's with a single CPU pin.
• These LED needs a microcontroller with firmware not included with the LED's.
• Arduino libraries available to get you going!
• Any microcontrller is fast enough, Consider faster CPU's if chains gets longer than 10 LEDS. ESP, RP2040 or ST is recommended.
• Use external Power buffers every 10 to 15 pods.

Key Fetures:

• Color: Full color RGB(WS2812 IC inside)each module as one pixel;
• LED Qty: One piece of high bright 5050 smd RGB led
• Input Voltage: DC5V
• Max current: 48MA
• Max Power: 0.3W
• Driver method: Constant 5V Drive
• Dimension: 18mm diameter (Use 18.5mm ... 19mm hole to mount)
• Viewing angle: 150-180degree
• Protection Level: IP68
• Certification: CE and RoHS
• Standard connection:
•  - Input: female 3pin JST connector
•  - Output:male 3pin JST connector:
• Standard wire length: 100MM
• Housing: Clear cover
• Mount: 18mm PETG Nut
• Lifespan: 35000 hours
• Operation temperature: -40DegC ... 50DegC
• Store temperature: -50DegC ... -60DegC
