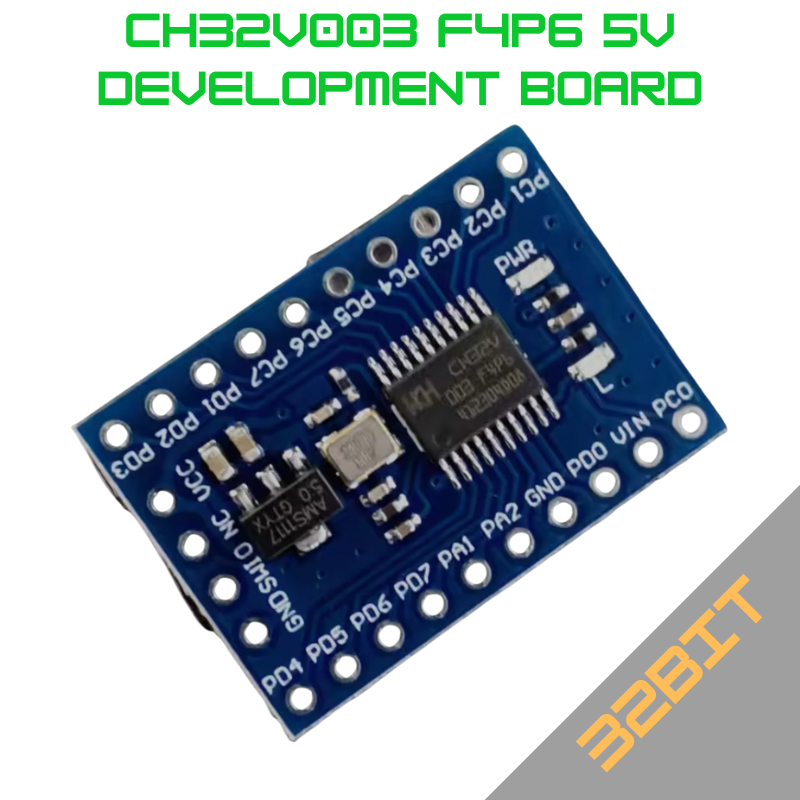

CH32V003F4P6 32Bit 48Mhz RISC MCU Development Board

The CH32V003F4P6 Mini Development Board is a compact and versatile platform designed for embedded system development. Based on the CH32V003F4P6 microcontroller, this board is an excellent choice for hobbyists, educators, and professionals looking to create innovative projects with ease. Its small footprint and rich features make it ideal for applications ranging from IoT devices to robotics and automation.

NOTE: you will need a programmer to program and do in-circuit debugging the device. You will find a lo cost programmer here: <Click Here>

Key Features:

• Microcontroller: CH32V003F4P6, a 32-bit RISC-V core microcontroller with a maximum clock speed of 48 MHz.
• Flash Memory: 4 KB of flash memory for code storage, enabling efficient program execution.
• RAM: 1 KB of SRAM for variable storage, providing ample space for your applications.
• I/O Ports: Multiple 5V GPIO pins for interfacing with a variety of sensors, modules, and peripherals.
• Power Supply: (Vin: 6.5.. 10V On-board 5V regulator), VCC:  5V , making it compatible with most modern electronics.
• Programming Interface: Supports easy programming and debugging through a standard USB interface.
• Compact Design: Miniature form factor (approximately 25.7mm x 18.2mm), allowing for easy integration into projects with space constraints.
• LED Indicators: Built-in LEDs for status indication and debugging purposes.
• Breadboard Compatibility: Designed to fit on standard breadboards, facilitating prototyping and experimentation.

Features:

• QingKe 32-bit RISC-V2A processor, support 2-level interrupt nesting
• Up to 48MHz system main frequency
• 2KB SRAM, 16KB Flash
• Supply voltage: 5V (also avalable in 3.3V)
• Multiple low-power modes: Sleep/Standby
• Power on/off reset, programmable voltage monitor
• 1 set of 1-channel general-purpose DMA
• 1 set of OPAs
• 1 set of 10-bit ADC
• 1×16-bit advanced-control timer and 1×16-bit general-purpose timer
• 2 Watchdog timers and 1×32-bit system time base timer
• 1 USART interface, 1 I2C interface, 1 SPI interface
• 18 I/O ports, can be mapped to 1 external interrupt
• 96-bit chip unique ID
• 1-wire serial debug interface
• Package: TSSOP20 (Also avalable in QFN20, SOP16, SOP8)

Applications

• IoT Projects: Ideal for developing smart home devices and IoT solutions.
• Educational Use: Perfect for teaching embedded systems and programming concepts.
• Robotics: Can be used in robotics projects for controlling motors and sensors.
• DIY Electronics: Suitable for hobbyists creating custom electronics and gadgets.

Why Choose the CH32V003F4P6 Mini Development Board? The CH32V003F4P6 Mini Development Board combines performance, flexibility, and ease of use in a compact package. Its powerful RISC-V architecture and extensive connectivity options make it a suitable choice for both beginners and experienced developers looking to create a wide range of applications. With a supportive community and ample resources available, you can quickly get started on your next project.
