WCH LinkE Online Download Debugger

SKU: B3376
R120.00
No tax
Delivery: 2-5 working days

WCH LinkE Online Download Debugger

Quantity

PLEASE NOTE: We've moved our retail store - Click here for our new Address
Spend R2,000.00 more and get Free Shipping!

Support online downloading and debugging of WCH RISC‐V architecture MCU and ARM chips with SWD interface,with two‐wire interface,fast speed and stable operation.

Key Features:

  • Support 3.3/5V dual power output.
  • Red and blue LED indicators for easy viewing of working status.
  • Directly marked on the interface definition board for ease of use.
  • Support for automatic firmware detection and upgrade.
  • Support for one‐button switching of RISC‐V/ARM mode by the host computer.
  • Optional: Use the transparent case to protect the motherboard,easy to carry.

Function:

WCH‐LinkE module,can be used for online downloading and debugging of WCH RISC‐V architecture MCU and ARM chips with SWD interface. It is connected to the host computer via USB2.0 full-speed interface for plug‐and‐play driver‐free installation and connected to the target chip by SWD interface for debugging and programming. Also with 1 way serial port for easy debugging output.

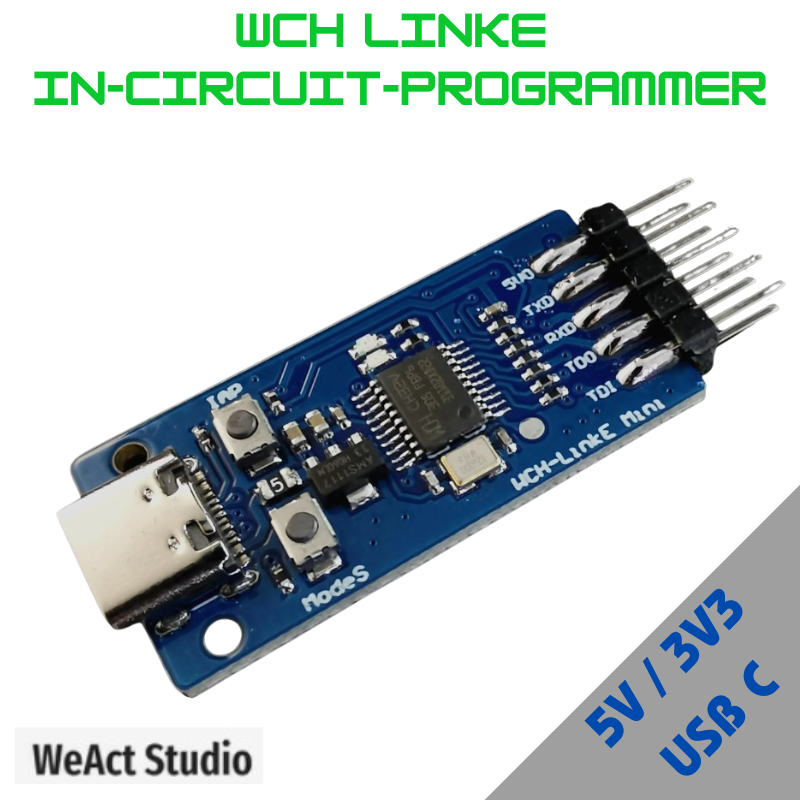

Hardware description:

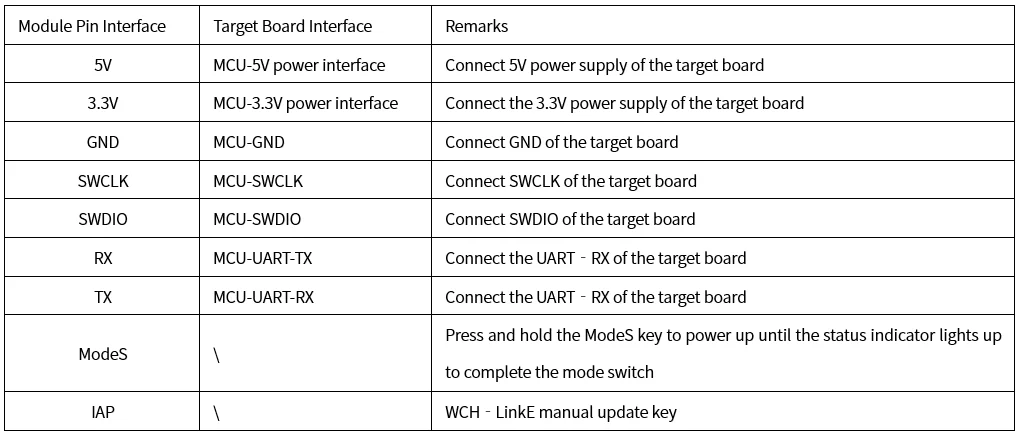

Pin Definition


If WCH-LinkE firmware needs to be updated:

  1. Online update,MounRiver Studio/WCH-LinkUtility will have a pop-up reminder when you click download,click Yes to start the update.
  2. Manual online update,press and hold the IAP key,power on until the blue LED is lit,click download,MounRiver Studio/WCH-LinkUtility will have a pop-up reminder,click Yes to start the update.
  3. Instructions for use

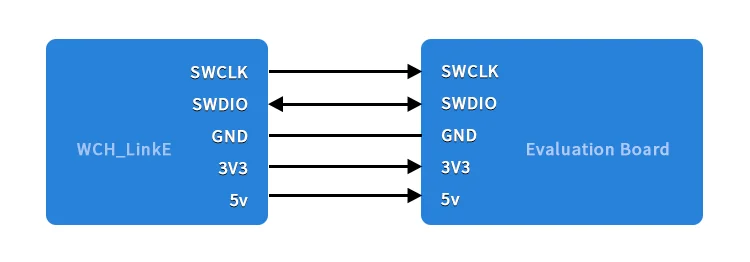

SWD connection method:


Technical resources:

  1. MounRiver Studio access website: http://mounriver.com/
  2. WCH-LinkUtility access website:https://www.wch.cn/downloads/WCH-LinkUtility_ZIP.html
  3. WCHISPTool access website: https://www.wch.cn/downloads/WCHISPTool_Setup_exe.html
  4. WCH-Link information website: https://www.wch.cn/products/WCH-Link.html
