Miniature RS485 (SP485 Chip) to Serial TTL interface

The RS485 Comms Module is an ultra-miniature communication board designed to provide reliable RS485 serial communication for embedded systems and microcontroller projects. Based on the SP485 chip, this compact module bridges the gap between standard serial interfaces and robust RS485 networks, making it an excellent choice for hobbyists, educators, and professionals developing multi-device communication systems. Its tiny footprint and straightforward interface make it ideal for applications ranging from industrial automation to home monitoring systems.

Key Features:

• Communication IC: SP485 chip for reliable RS485 differential signalling.
• Ultra-Compact Design: Miniature form factor suitable for space-constrained projects and easy breadboard integration.

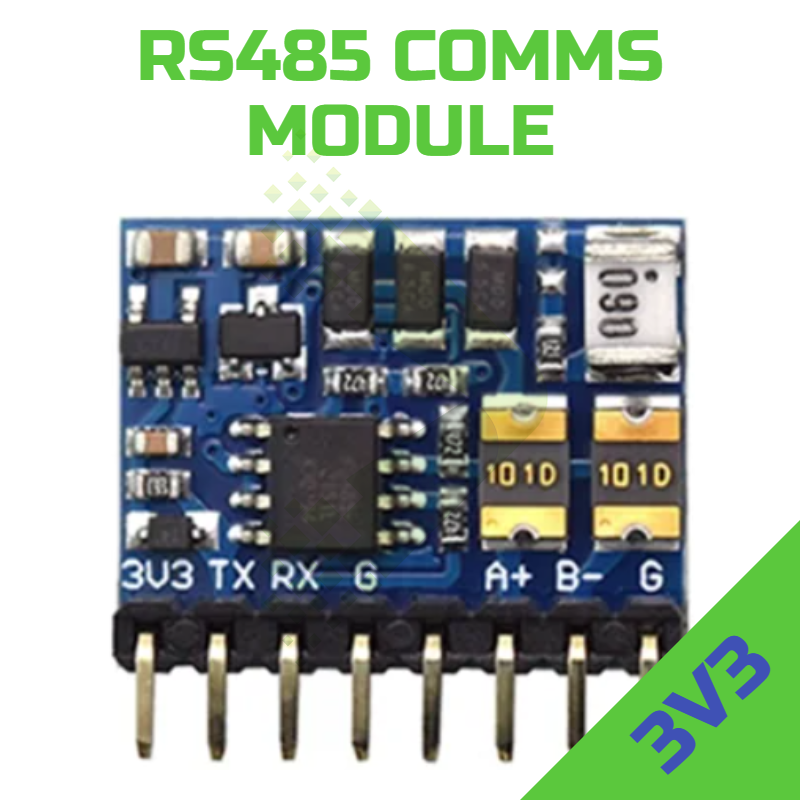

• Pin-Out Labels: Clear silkscreen markings including 3V3, TX, RX, G (Ground), A+, B-, and G for straightforward connections.
• Non-Isolated Design: Direct RS485 conversion without galvanic isolation, optimised for cost-effective short to medium-distance applications.
• Power Supply: 3.3V operation (3V3 marking visible), compatible with modern microcontroller ecosystems.
• LED Indicator: On-board status LED (1010 marking) for power or activity indication.
• Standard Terminal Connections: Simple TX/RX serial interface on one side, A+/B- differential pair on the other.
• Through-Hole Pins: Gold-plated header pins for secure connections to development boards or breadboards.

Features:

• RS485 Transceiver IC: SP485 or equivalent half-duplex transceiver
• Operating Voltage: 3.3V DC
• Serial Interface: TX (Transmit) and RX (Receive) for UART communication
• Differential Outputs: A+ and B- terminals for RS485 bus connection
• Ground Connections: Multiple G (Ground) pins for flexible wiring
• Compact PCB: Approximately 15mm x 18mm footprint
• Component Markings: Visible "1010" designators and clear pin labels
• Blue Solder Mask: Professional PCB finish with white silkscreen text
• Standard 2.54mm Pin Spacing: Compatible with breadboards and prototyping headers
• Passive Components: On-board resistors and capacitors for signal conditioning and stability
• No External Components Required: Ready to use out of the box

Applications

• Industrial Automation: Connect sensors and actuators over long cable runs in noisy environments.
• Multi-Device Networks: Build networks of microcontrollers, PLCs, and embedded systems using RS485 bus topology.
• Home Automation: Link distributed control nodes for lighting, HVAC, and security systems.
• Educational Projects: Teach serial communication protocols and differential signalling concepts.
• DIY Electronics: Add robust, noise-resistant communication to custom electronics and robotics projects.

Why Choose the RS485 Comms Module? This ultra-compact RS485 module delivers professional-grade serial communication in a beginner-friendly package. Its clear labelling, tiny size, and straightforward TX/RX interface make it simple to integrate into any project requiring reliable data transmission over distance. Whether you're building a sensor network or learning about industrial communication standards, this module provides an accessible and cost-effective solution to get your devices talking.
